HIT Trailed tedders

From 7.85 to 8.86 m working width

Technical data

HIT 8.91 T
Working width8,86 m
Working width DIN8,6 m
Transport width3 m
Transport height3,65 m
Parking height3,26 m
Weight1510 kg
Power requirement60 hp
Number of rotors8 pcs.
Number of arms per rotor6 pcs.
Type of tinesunequal leg length
Quality of tinesSuper C
Tine security systemHEAVY DUTY as standard
TransmissionPTO shaft
Rotor diameter1,42 m
Fenceline spreading systemrigid
Tyres – rotor outside / inside16 x 6,5-8 / 16 x 9,5-8
Tyres – chassis260/70-15,3

*Always confirm model specifications & pricing with a Gendore Product & Sales Specialist
HIT Trailed tedders

Standard Equipment

  • HIT T

    HIT T
    MountingTrailed hydraulic folding
    Mounting optionMounting brackets on lower linkages
    Mounting categoryCat. II / 2
    PTO shaft guardingwith cam clutch
    PTO shaft profile1 3/8″ 6-splines
    Hydraulic connection1 x single-acting for the lifting system
    Electrical connection1 x 7-pin lighting plug for warning signs with lighting
    Standard equipment includesOperator’s manual

    Spare parts list

  • HIT T

    HIT T
    MountingTrailed hydraulic folding
    Mounting optionBar between lower linkages

    Tractor drawbar

    PTO shaft guardingwith cam clutch
    PTO shaft profile1 3/8″ 6-splines
    Hydraulic connection1 x single-acting for the lifting system
    Electrical connection1 x 7-pin lighting plug for warning signs with lighting
    Standard equipment includesOperator’s manual

    Spare parts list

  • HIT T

    HIT T
    MountingTrailed hydraulic folding
    Mounting optionThree point linkage c/w enclosed lower link pins
    Mounting categoryCat. II / 2
    PTO shaft guardingwith cam clutch and free-wheel
    PTO shaft profile1 3/8″ 6-splines
    Hydraulic connection1 x double acting for the lifting system
    Electrical connection1 x 7-pin lighting plug for warning signs with lighting
    Standard equipment includesOperator’s manual

    Spare parts list

Technology

  • DYNATECH The new rotor technology

    DYNATECH rotor

    DYNATECH rotor

    Yet another PÖTTINGER innovation: The unique swept-back tine arms guarantee a tidy distribution pattern. High performance is built in to our mounted and trailed HIT tedders.

    DYNATECH for all HIT models

    Rotors with a diameter of 1.30 m and five arms are ideal for young, short forage. Rotors with a diameter of 1.42 m or 1.67 m and six arms are designed for different working widths and operating conditions.

    Four times as clean

    • Forage pick-up – small rotor diameters guarantee clean crop pick-up
    • Forage – optimum ground tracking of each rotor for clean forage
    • Spread pattern – ideal spreading angle for a uniform blanket of clean forage
    • Machine – no snagging thanks to the sleek design of the rotor units

    The curved shape of the tine arms is unique.

    Guiding the tines in a sweeping movement means less stress on the bearings. At the same time the trailed tines move more smoothly, are softer and handle the forage more carefully. The curved shape prevents forage from building up in the tine arms and wrapping around the rotors.

  • HEAVY DUTY tines

    HEAVY DUTY

    More safety

    • The bolted mounting ensures a secure fit.
    • A tine security system is standard – to cover all eventualities.

    Tines with a longer service life

    • An arched mounting supports the tine springs.
    • Plenty of space between the tine springs and the tine arms allows for the best elasticity and movement.
    • Strong Super-C quality tines.

    Clean forage

    Offset tine lengths pick up the forage uniformly and contribute significantly to improved tedding quality. Choose between two angles by rotating the mounting through 180°. The cleanest possible forage is guaranteed.

    High-strength tine arm mountings

    Tine arm mountings

    The rotor plates are made of heavy-duty, thick-walled pressed components with precise placement for the tine arms. In addition, the tine arms are also bolted to the rotor hubs to ensure an extremely secure mounting.

    The tines and tine arms are subject to the highest stress during tedding. The solid flat bar tine arms feature indentations to ensure that the tines remain securely in place.

  • Fenceline tedding – easy and convenient

    Fenceline spreading system

    Fenceline spreading system

    Mechanical fenceline tedding system

    Mechanical fenceline tedding system

    Fenceline tedding cylinder

    Fenceline tedding cylinder

    Actively setting the wheels at an angle causes the tedder to run diagonally so the forage is directed onto the mown area. Neighbouring crops remain untouched. Because the wheels can be set to the left or right, fenceline tedding can be activated in any driving direction.

    Mechanical fenceline tedding system

    HIT 4.54 T

    • The wheels on all four rotors are set individually by hand.
    • Lever positions centre – left – right

    Hydraulic fenceline tedding system

    HIT 6.80 T / HIT 8.91 T

    All the wheels can be adjusted conveniently from the tractor seat by a double-acting hydraulic cylinder into the positions left, centre, right. The wheel position indicator is clearly visible from the driver’s seat.

    The most cost-effective version

    If you do not require a fenceline tedding system, the wheels are mounted securely to the rotor casing as standard using roll pins.

  • Durable and Reliable

    Durable and reliable over many years

    Backlash-free drive joints

    Double joints

    Sealed single and double constant velocity joints ensure consistent, smooth, backlash-free transmission. This ensures that the tines pick up the crop at a precise frequency and distribute it evenly. At the same time, they can be rotated in any position, eliminating the possibility of operator errors.

    Clevis-type frame hinges provide each rotor with the freedom of movement for perfect ground tracking. Fitted with plain bushes, they are easy to lubricate.

    HIT – Rugged rotor transmissions

    Rotor transmissions



    Drive shaft

    • Large gears and bearings ensure smooth operation.
    • The closed angular gear units are equipped with grease lubrication systems.
    • No oil leaks possible.
    • The joints are mounted on a splined shaft.

    Drive shaft



    Runs smoothly and protects the ground

    Protects ground

    The large 16 x 6.5-8 flotation tyres on each rotor ensure smooth running and protect the sward, even over soft and bumpy ground. Each wheel is fitted with a cover that also serves as anti-wrap guard.

    HIT 8.91 T / HIT 8.9 T / HIT 10.11 T / HIT 12.14 T

    The two inner rotors on the HIT 8.81 and HIT 8.91 are fitted with 16 x 9.50-8 flotation tyres. This improves weight distribution during operation and conserves the soil.

    Adaptable for neat results – tool free adjustments

    Tool free adjustment

    The rotors can be moved into three positions without the need for tools. You can adapt the rotors to the forage conditions quickly and easily. A uniform and tidy spread pattern is ensured as a result.

    Automotive paintwork quality

    CIP and powder coating guarantee elasticity and durability. Together with attractive colours and modern design, a high resale value is ensured.

  • HIT 4.54 T – four rotor tedder

    HIT 4.54 T

    The trailed HIT 4.54 T delivers professional tedding with small tractors. At the headland and during transport, the rotors are raised by a hydraulic cylinder inside the drawbar.

    Fenceline tedding

    All wheels are pivoted by hand for fenceline tedding.

  • HIT 6.80 T – six rotor tedder

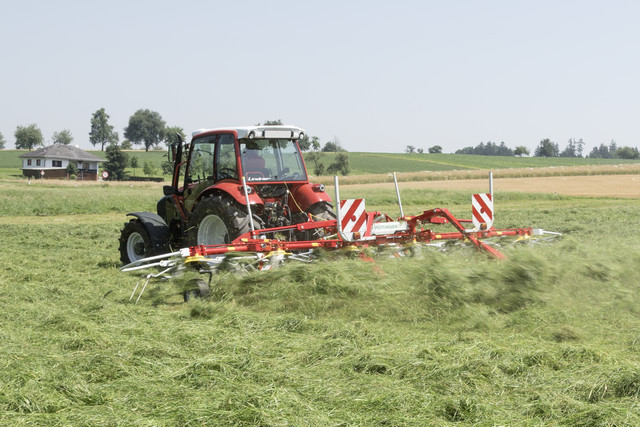

    HIT 6.80 T in use

    HIT 6.80 T

    The HIT 6.80 T is equipped with an additional chassis that runs behind the machine during operation in the field.

    Straightforward operation

    Our six-rotor tedders are easy to operate hydraulically. You can also specify the hydraulic fenceline tedding system.

    HYDROLIFT is fitted as standard. The outer pair of rotors are raised to the limit stops during turning, while the transport chassis lifts the tedder clear of the ground.

  • HIT 8.91 T – eight rotor tedder

    The trailed tedder with eight rotors for high performance with smaller tractors.

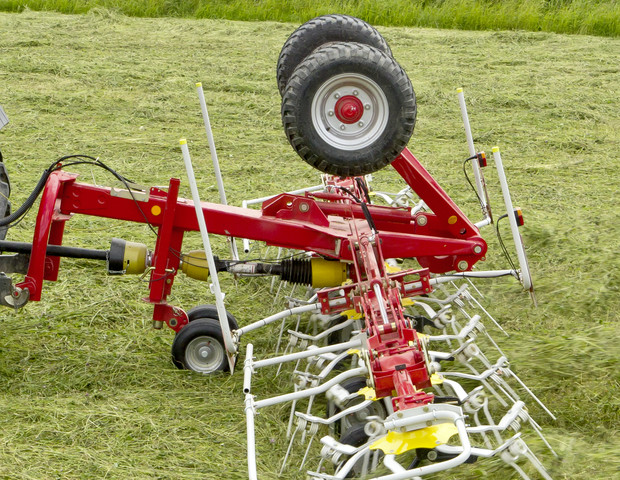

    MULTITAST double jockey wheel

    MULTITAST double jockey wheel

    Ground tracking and forage protection are the key objectives of the trailed HIT 8.91 T. An optional double jockey wheel on the drawbar tracks the ground immediately in front of the tine path to guide the rotors over the contours.

    Robust Yoke

    Robust Yoke

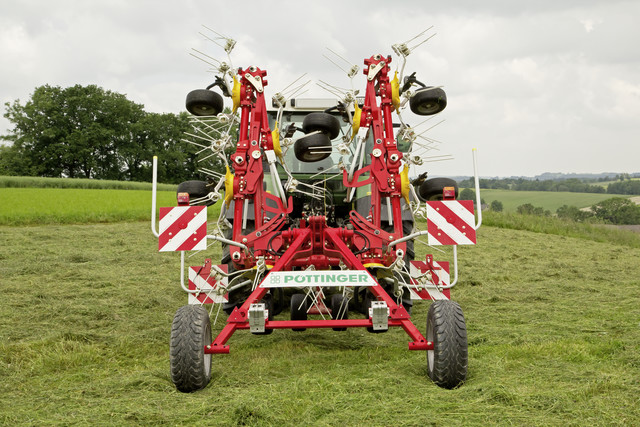

    Transport position

    Transport position

    Compact and safe during transport

    The tedder is attached to the lower linkages of the tractor by a robust yoke to provide stability during transport. The wide chassis is fitted with 260/70-15.3 tyres. During operation, the chassis is folded hydraulically over the rotors.

    The two inner rotors on the HIT 8.81 and HIT 8.91 are fitted with 16 x 9.50-8 flotation tyres. This improves weight distribution during operation.

    Convenient operation

    The whole machine can be operated using one double-acting connection. Sequential stepping valves control all the functions one after the other in the right order.
