IMPRESS F – fixed chamber balers

Technical data

IMPRESS 125 F MASTERIMPRESS 125 F PRO
Bale diameter1,25 m1,25 m
Bale width1,2 m1,2 m
Power requirement80 hp100 hp
Pickup width2,05 m2,3 m
Number of knives max.16 pcs.32 pcs.
Knife spacing72 mm36 mm
Length4,66 m4,66 m
Width2,62 m2,83 m
Height2,55 m2,55 m
Tyres380/55-17500/50-17
Weight of basic version4750 kg4850 kg



*Always confirm model specifications & pricing with a Gendore Product & Sales Specialist
IMPRESS F – fixed chamber balers

Standard Equipment

  • IMPRESS F MASTER

    ChassisSingle axle
    Braking systemhydraulic brakes
    MountingUniversal drawbar – height adjustable using spindle
    Towing eye50 rotating
    PTO shaft guardingWide-angle PTO shaft on one side, equipped with a cam-type clutch
    PTO shaft profile1 3/8″ 6-splines
    P.T.O. shaft – overload protection2350 Nm
    Pick-upPick-up 5-row, working width 2050 mm

    Floating suspension 120 mm of movement

    2 transverse augers per side

    Support wheelpivoting
    Baffle plateCrop press roller with ø 200 mm
    RotorLIFTUP Rotor with patented twist design, 4 rows of tines, placed offset
    Chopping systemFLEXCUT 16 Short chop – chopping system with TWIN BLADE reversible knives

    Variable knife operation system, mechanical

    NONSTOP knife security system

    Knife bankHydraulic folding of knife bank and cutting floor

    patented EASY MOVE function, swing out knife bank

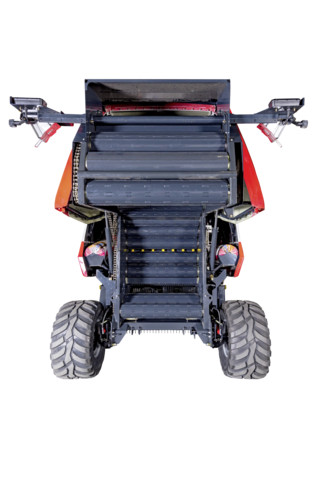

    Baling chamberFixed chamber-compression system with 18 rollers

    large dimensioned bearings 50 mm Ø

    Front sectionTangential crop flow in the baling chamber

    2 aggressive starter rollers top and bottom, each

    Compression pressureis designed for highest bale chamber tension pressure
    StrappingNet wrapping
    Net changeNet size max. 1.30 m, diameter up to 0.31 m
    Chain lubricationAutomatic chain lubrication

    Central lubrication block

    Operationelectronic SELECT CONTROL
    Hydraulic connection2 x double acting BG 3

    1 x Free return BG 4

    Electrical connection1 x 7-pin lighting plug

    1 x 3-pin Cobo plug

  • IMPRESS F PRO

    ChassisSingle axle
    Braking systemhydraulic brakes
    MountingUniversal drawbar – height adjustable using spindle
    Towing eye50 rotating
    PTO shaft guardingWide-angle PTO shaft on one side, equipped with a cam-type clutch
    PTO shaft profile1 3/8″ 6-splines
    P.T.O. shaft – overload protection1600 Nm
    Pick-upPick-up 5-row, working width 2300 mm

    Floating suspension 120 mm of movement

    2 transverse augers per side

    Support wheelTrailed jockey wheel
    Baffle plateCrop press roller with ø 200 mm
    RotorLIFTUP Rotor with patented twist design, 4 rows of tines, placed offset
    Chopping systemFLEXCUT 32 Short chop – chopping system with TWIN BLADE reversible knives

    Variable knife operation system, mechanical

    NONSTOP knife security system

    Knife bankHydraulic folding of knife bank and cutting floor

    patented EASY MOVE function, swing out knife bank

    Baling chamberFixed chamber-compression system with 18 rollers

    large dimensioned bearings 50 mm Ø

    Front sectionTangential crop flow in the baling chamber

    2 aggressive starter rollers top and bottom, each

    TailgateHydraulic tailgate
    Compression pressureis designed for highest bale chamber tension pressure
    StrappingNet wrapping

    ISO automatic for speed-dependent tying start

    Net changeNet size max. 1.30 m, diameter up to 0.31 m
    Chain lubricationRoller bearing greased via progressive distributor

    Automatic chain lubrication

    OperationElectronic comfort operation POWER CONTROL, ISOBUS-compatible
    Hydraulic connection1 x single-acting BG 4

    1 x Free return BG 4

    1 x Load Sensing (option), BG 2

    Electrical connection1 x 7-pin lighting plug

    1 x 3-pin Cobo plug

Technology

  • Pick-up

    Pick-up with maximum capacity

    A controlled floating pick-up

    The PÖTTINGER pick-up is 2.05 m wide (standard MASTER) or 2.30 m wide (standard PRO) and is controlled from both ends by steel cam tracks. The tines are slightly trailing to sweep in a controlled arc and adapt ideally to contours. Clean forage is guaranteed.

    The fully active tine length up to the control point ensures the forage is transferred to the rotor perfectly.

    Combined with the reduced speed of the rotor, the forage is not dragged but fed actively into the rotor.

    Five controlled rows of tines ensure that crop is collected reliably at high capacity, even while driving at high speeds in difficult harvest conditions.

    • Jockey wheels can easily be height-adjusted.
    • Pick-up float function with 8 settings for flexibility in straw.
    • Hold-down roller with a diameter of 200 mm and optimised transfer rods for highest rate of intake.

    Two pick-up widths

    Five rows of controlled tines.

    IMPRESS MASTER

    2.05 m, with fixed jockey wheels / optional 2.30 m with trailing jockey wheels.

    IMPRESS PRO

    2.30 m with trailed jockey wheels.

    Best ground tracking – Clean forage

    Ground adaptation

    The suspension point in the middle of the pick-up and two jointed support arms ensure the pick-up has complete freedom of movement with a unique vertical travel of 120 mm at the tines. To ensure perfect ground tracking and cornering, the 16 x 6.5-8 jockey wheels can be adjusted to ensure they make contact with the ground on precisely the same line as the tines.

    Perfect forage flow

    Forage flow

    A swath roller with crop transfer rods guarantees perfect forage flow in every type of crop, even at high speed.

    Two cross conveyor augers on each side ensure optimum feeding. Especially with dry material, these actively convey large volumes for enormous intake capacity.

  • LIFTUP rotor

    Living agricultural technology

    As experts, we at PÖTTINGER face the challenges you find in the field every day.

    Tangential crop flow

    The bale starts turning reliably in all operating conditions. Regardless of whether in wet or dry conditions, whether for straw, hay or silage – here is one machine for all operating conditions.

    32 knives

    16 knives

    Patented spiral configuration

    The bale chamber is fed uniformly across the whole width. This greatly reduces any weaving needed to produce perfectly shaped bales.

    Pull-out EASY MOVE knife bank

    Agriculture needs straightforward operations. LIFTUP technology places the chopping system above the rotor. The higher the number of knives, the greater the importance the ease of maintenance becomes.

    Maintenance-friendly

    With the IMPRESS, maintenance is straightforward and simple. Another innovation is the use of TWIN BLADE reversible knives, which provide double the service life. Now it is no longer necessary to sharpen knives during a days work.

    The perfect flow – unique crop flow

    IMPRESS crop flow profile

    Literally redefining the crop flow into the baler has brought about many positive advantages: Firstly, the new LIFTUP technology enables a natural flow of crop, so that the forage enters the bale chamber tangentially at an ideal angle. The long transfer throat ensures excellent mixing of the crop. This helps the bale retain its shape even when handled multiple time.

    • Tangential crop flow into bale chamber for a perfect start to the bale.
    • Two starter rollers above and below the throat.
    • The rotor has seven rows of tines arranged in a spiral and a diameter of 650 mm.
    • The loading rotor is mounted on self-aligning ball bearings at both ends.

    Cleaning rotor

    Any material that does fall through is fed back into the flow by the cleaning rotor (1). This is a unique design that solves the problem of disintegration of material with a higher number of knives. The result is a high baling performance with very low disintegration losses.

    • Any disintegrated material is fed back via the cleaning rotor into the flow of crop (2).

  • FLEXCUT 32

    Top-mounted short chop system

    Short chop system

    Short chopped length

    Loader wagon chopping quality now available on round balers 36 mm short chop with 32 knives

    The new, pull-out FLEXCUT 32 short chop system features 32 TWINBLADE reversible knives provides a theoretical chopped length of 1.42″ / 36 mm across the entire rotor width.

    PÖTTINGER, the world leader in loader wagons, has thus managed to integrate loader wagon chop quality into a round baler for the first time. Short chop not just for silage, but also for hay and straw. That is unique.

    IMPRESS MASTER models 16 knives, knife spacing 72 mm

    Advantages of the IMPRESS chopping system

    • NONSTOP individual knife protection system.
    • Variable knife group switching offers more flexibility.
    • TWIN BLADE knives – double the service life and replacements are always on-board.

    The knives are produced from hardened tool steel and their pressed serrated edge ensures a precise chop.

    Flexible chopping system floor

    Easy relief of blockages

    If a blockage occurs, the cross section of the throat can be increased temporarily by lowering the chopping system floor vertically (1). This allows the blockage to clear easily and effortlessly.

    Different chopping configurations

    PRO 0 – 16 / 16 / 32 knives

    MASTER 0 – 16 / 16 knives

    Up to 16 knives can be disengaged on the knife bank (MASTER and PRO) to create different chopping configurations. These are always active when the knife bank is swung back in. The knives on the shafts A and B can be pivoted either in or out.

    Variable knife group switching

    Number of knives on the knife bank

    PRO 0 – 16 knives
    MASTER 0 – 16 knives

    On the square cross-section of the interlock shaft, the knife groups A and B are engaged and disengaged using a lever.

    Shaft A

    PRO 0 – 16 knives
    MASTER 0 – 8 knives

    Shaft B

    PRO 16 knives
    MASTER 0 – 8 knives

  • EASY MOVE now available on round balers - unique system

    Patented EASY MOVE system

    EASY MOVE – knife bank system that pulls out from the side

    EASY MOVE – safe and convenient

    The IMPRESS models feature an EASY MOVE knife bank system that pulls out from the side. This offers the highest level of safety and convenience; maintenance takes place at workbench height outside the bale chamber, away from the hazardous area of the round baler. The higher the number of knives, the greater the importance the ease of maintenance becomes. The PÖTTINGER IMPRESS provides an ingenious and convenient solution.

    It’s so easy with an IMPRESS

    • Lower the pick-up and swing out the chopping system hydraulically.
    • Remove cylinder, release knife bank and pull out.
    • Rotate the knife shaft. The knife bank is secured in its outer position and at the same time the knives are released centrally.

    Safe, convenient and time saving

    • The knives can be reversed or replaced quickly and easily.
    • Rotate the knife shaft back again to lock them in place. The knife bank is now ready to be pushed back in.
    • Push in the knife bank, secure, attach cylinder, swing chopping system back in – job done!

  • Net wrapping

    IMPRESS net wrapping



    The bales are wrapped tightly in the set number of layers of net. The net binding system also boasts several special features: Using a feeder plate, the net wrap is fed reliably into the bale chamber. The net wrap is propelled into the bale chamber quickly.

    When the moveable net wrap feeder unit moves into the chamber, the net wrap brake is deactivated. As soon as the net wrap enters the bale chamber, the net wrap brake is applied so that the net wrap is tensioned and wraps tightly right from the beginning.

    • Maximum net wrap width 1.30 m, diameter up to 31 cm.
    • Spare net wrap roll holders are located behind the covers on each side.

    Changing the roll of net wrap

    Pull back the tracking roller to activate the brake so that the tensioning block can be unbolted.

    IMPRESS MASTER
    Start net wrapping manually or in automatic mode, adapting to bale diameter.

    IMPRESS PRO

    • Start net wrapping manually or in automatic mode, adapting to bale diameter.
    • Automatic ISO system for speed-dependent wrapping start and adjustable binding delay.

    Automatic pick-up lift
    As soon as the “full signal” sounds, the pick-up is automatically raised.

  • Drawbar / Chassis / Maintenance

    Reliable operation

    Two starter rollers above and below the throat.

    Our customers put their trust in our reliability The bale chamber has two starter rollers above and below the throat to make sure the bale is formed reliably in every situation. All the rollers in the bale chamber are designed for the highest pressures to ensure the greatest reliability.

    Universal drawbar

    The height of the universal drawbar can be infinitely variable adjusted using two turnbuckles. A ball hitch is also available as an option for the low drawbar.

    • All hoses and cables are routed tidily through the hose holder.
    • A parking stand makes it easy to attach and detach.

    Air brakes or hydraulic brakes

    Axles equipped with brakes enhance safety while driving on the road and in steep terrain.

    Tyres on demand

    MASTER standard tyres 380/55-17,

    optional 500/50-17, 520/50 R 17, 500/60 R 22.5, 620/40 R 22,5

    PRO standard tyres 500/50-17

    optional 520/50 R 17, 500/60 R 22.5, 620/40 R 22,5

    IMPRESS with tandem axle
    IMPRESS with tandem axle

    Tandem axles

    Optionally available for the smoothest ride in the field and on the road. Tyres 380/55-17, 500/50-17, 520/50 R 17

    Maintenance-friendly
    The automatic chain lubrication system optimises ease of maintenance and guarantees a long service life of the baler.

    MASTER models

    Lubrication

    • Automatic chain lubrication. (1)
    • Greasing of the bearings on the rollers and bale belt bearings via a central greasing point. (2)

    PRO models

    Lubrication

    • Automatic chain lubrication. (1)
    • Progressive greasing of the bearings on the rollers using a progressive distributor. One grease nipple.
    • Automatic lubrication system is optional. (3)

    Comfort
    PÖTTINGER IMPRESS

    Automatic tailgate

    Tailgate opens automatically after bale has been tied, tailgate closes automatically (only if bale kicker is in use).

  • Operating comfort

    SELECT CONTROL – Electronic comfort control as Standard with all MASTER models

    SELECT CONTROL

    • Functions can be preselected using the terminal
    • High quality 2-component casing with display and status indicator
    • Raised back-lit keys for optimum visibility at night
    • Operator console with magnet mounting
    • Total bale counter and daily bale counter
    • Flexible soft core setting in 3 zones
    • Acoustic signal before baling starts
    • Acoustic complete-signal
    • Displays belt tension (V), forming pressure (F), diameter, number of net layers
    • Driving direction display
    • Automatic operating modes: Automatic tying system
    • Status symbols for pick-up, knives, chopping floor and net wrapping
    • Setting of bale diameter, net layers and forming pressure

    Hydraulic connections:
    2 x double acting (BG 3), 1 x free flow return (BG 4)

    POWER CONTROL – Electronic control system Standard at IMPRESS PRO models

    POWER CONTROL

    • Functions can be controlled directly from the terminal
    • High quality 2-component casing with display and status indicator
    • 4 function keys for convenient operation of additional equipment
    • Raised back-lit keys for optimum visibility at night
    • Diagnostics system: Displays error messages
    • Oil filter (standard)
    • Operator console with suction mounting
    • Total bale counter and 3 separate customer counters
    • Flexible soft core setting in 3 zones
    • Acoustic signal before baling starts
    • Acoustic complete-signal
    • Display of belt tension (V), forming pressure (F), diameter, number of net layers
    • Status symbol for pick-up, knives, chopping floor, tying and automatic lubrication (option)
    • Driving direction monitor
    • Automatic operating modes: Automatic binding, automatic tailgate and pick-up (bale kicker required)
    • Semi-automatic function for all automatic modes – unique feature
    • Setting of bale diameter, net layers and forming pressure

    Hydraulic connections:

    1 x double acting (BG 4) and 1 x free flow return (BG 4)

    1 x load sensing (optional – BG 2)

    CCI 100 ISOBUS – one terminal for everything optional for IMPRESS PRO



    ISOBUS is the worldwide standard for the communication between tractors and machinery, as well as the transfer of data between these mobile systems and agricultural office software. The PÖTTINGER CCI 100 ISOBUS terminal not only offers all the functions provided by the POWER CONTROL terminal, but also enables professional operation of all ISOBUS-compatible machines from a wide range of manufacturers.

    • Rugged synthetic casing
    • High quality 8.4″ TFT colour touch-screen
    • Six soft keys on left and right (F1-F12)
    • Ambient light sensor and back-lit function keys
    • Total bale counter and 20 single customer counters
    • USB interface for screen shots and terminal programmer extension
    • Video input for M12x1 camera
    • AUX-Joystick compatible
    • Scroll wheel with confirmation function for direct input and adjustment of setpoints
    • Extended ISOBUS functions:
    • ISO automatic binding (speed signal required via signal socket)

  • Fixed chamber round balers

    PÖTTINGER IMPRESS Fixed chamber round balers

    IMPRESS F

    IMPRESS profile



    IMPRESS 125 F MASTER / 125 F PRO

    Bale width 1.20 m, bale diameter 1.25 m

    The fixed chamber on the F models has 18 chain-driven rollers to form uniform, high-stability bales. The material to be baled is compressed until the pressure on the tailgate sensor reaches the pressure set at the terminal. Binding takes place automatically or at the touch of a button, depending on the setting.

    The front seven rollers make sure the bale rotates in every situation, even with straw.

    • Two starter rollers above and below the throat. (1)
    • Five drive rollers with a wall thickness of 4.5 mm at the front, ensure the highest drive power for really compact bales. (2)
    • Eight rollers with a wall thickness of 3.5 mm in the tailgate to control bale shape, hydraulic tailgate designed for the highest baling pressures. (3)
    • Heavy duty self-aligning bearings with a diameter of 50 mm.

    All rollers have the same dimensions in order to withstand the highest pressures and achieve maximum bale density.


  •   New Holland
  •   New Holland Construction
  •   Hustler Equipment
  •   Giltrap Equipment
  •   Zago Equipment
  •   Alpego Equipment
  •   Kverneland Taarup Equipment
  •   Vicon
  •   McHale
  •   BA Group
  •   Erth Engineering
  •   Taege
  •   Fleming
  •   Keltec
  •   Karcher
  •   Pottinger
  •   Gamberini
