LION 1002
Heavy-duty power harrows – 3 to 4 m working width
Technical data
LION 3002 | LION 4002 | |
Compare | Compare | |
Working width | 3 m | 4 m |
Rotor | 10 pcs. | 14 pcs. |
Driveline speed with grass header | 1000 rpm | 1000 rpm |
Rotor speed | 342 rpm | 342 rpm |
Tine dimensions | 18 x 340 mm | 18 x 340 mm |
Power requirement | 110 – 250 hp | 140 – 250 hp |
Transport width | 3 m | 4 m |
Weight of basic version | 1190 kg | 1450 kg |
Weight cage roller Ø 540 mm | 325 kg | – |
Weight toothed packer roller Ø 500 mm | 525 kg | – |
Weight toothed packer roller Ø 550 mm | 547 kg | – |
Weight crumbling packer roller Ø 525 mm | 520 kg | 750 kg |
Weight pack ring roller Ø 550 mm coated | 550 kg | 740 kg |
Weight toothed packer roller Ø 500 mm coated | 528 kg | 600 kg |
Weight toothed packer roller Ø 550 mm coated | 558 kg | 690 kg |
Weight prism packer roller Ø 500 mm coated; 12,5 cm row spacing | 560 kg | 735 kg |
Weight prism packer roller Ø 500 mm coated; 15 cm row spacing | 530 kg | 695 kg |
Weight rubber packer roller Ø 585 mm coated | 575 kg | – |
Standard Equipment
LION 3002 / 4002
Mounting | Rear three-point |
Mounting option | Three point linkage c/w enclosed lower link pins |
Mounting category | Cat. II / 2 Cat. III / 3 |
Rotor unit | Tapered bearings |
PTO shaft guarding | equipped with a cam-type clutch |
PTO shaft profile | 1 3/8″ 6-splines |
Standard equipment includes | Rear levelling board Spring-loaded side boards Foldable side boards |

Technology
- The rotor transmission, the heart of the machine
The rotor transmission, the heart of the machine

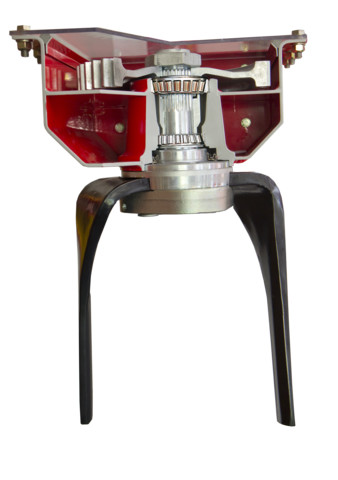

The rotor transmissionLION power harrows guarantee extremely smooth running and high strength. These machines operate reliably even in the hardest conditions and heaviest soil. Just take a look at this impressive technology
- Thick-walled gear trough made of fine-grained steel – extremely resistant to twisting.
- Tapered front edge – soil can flow past unrestricted without bulldozing.
- Large gears feature integrated bearings. Extended inner splines for a secure seat on the rotor shaft.
- The bearing housings are welded to the central gusset and bottom of trough. An exact spacing between each rotor is guaranteed as a result.
- Robust tapered roller bearings in forged, single-piece bearing housings.
- The lower bearings are located as close as possible to the tine carrier, helping to reduce lateral stress.
- The upper and lower bearings are spaced as far apart as possible to reduce load and minimise stress.
- The forged, full-width tine carriers are integrated into casing. This offers the best protection against wrapping because the tines deflect the soil away from the gear trough. As a result stones cannot become trapped between the rotors.
Impressive driveline
- 2.36″ / 60 mm diameter rotor shafts on LION 1002 series
- Bearings and gears run submerged in semi-liquid grease.
- Labyrinth rotor shaft seals.
- The tines are 0.71″ / 18 mm thick and can be reversed to be used on both edges.
- Quick-fix tine replacement system optional.
- Quality
Quality
Precision in every detail
Gear trough
Tine mountingsExtended service life is only possible thanks to precision machining and strong construction. At PÖTTINGER this level of high quality goes without sayingGear trough and tine mountings
- The high-strength deep gear trough provides the gearbox with excellent torsional strength.
- Large toothed gears, 1.97″ or 2.36″ / 50 or 60 mm thick rotor shafts with heavy-duty tapered roller bearings and wide bearing spacing ensure durability
- The deep gear trough is formed from a single piece of steel. The welded central gusset provides maximum stability.
- The bearing housings are welded into the box section before milling at the CNC machining centre. This ensures exact rotor-to-rotor spacing and guarantees you smooth-running and a long service life.
- Forged components from the PÖTTINGER hardening centre offer many years of reliability.
Durable bearings
Durable bearingsThe bearings and gears are sealed and run submerged in semi-liquid grease. The tough bevel gears are made from tempered steel. The lower bearing is located close to the tine carrier. This takes the stress off the bearing and reduces wear. The shaft and bearing are protected by a labyrinth seal, which prevents loss of semi-liquid grease and at the same time ensures no dirt can penetrate.Tines hardened completely through
Tine mountingsThe tines are the critical interface to the seedbed. Penetration of the ground is optimised for the most uniform tilth.
- LION power harrow tines are swept inwards and angled to the rear. As a result the soil near the surface is loosened and crumbled intensively. Larger clods remain lower down.
- The 18 x 340 mm thick tines are made from hardened boron steel and are heat treated right through the complete cross section.
- Both tines are seated securely in the recesses in the tine carrier. Two alignment pins keep the tines centered and they are secured using a clamping plate.
- Only two bolts are needed on each rotor. These can be loosened without chocking the rotors.
DURASTAR tines – coated and proven in the field
DURASTAR tines- 60 % longer service life thanks to special hard wearing coating
- 0.59″ / 15-mm and 0.71″ / 18-mm-thick reversible tines
- Excellent retention of shape
- Consistent work quality
- Technology at the highest level
Technology at the highest level
Quick-fix tines
Quick-fixThe rapid and reliable solution available as an option
- Remove lynch pin and lock pin
- Remove tines
- Fit new tines
- Refit lock and lynch pin – finished!
Universal tines for every operation
Flexible positionThe tines can be positioned aggressively pointing forwards, or in a trailing position. Either position achieves excellent tilth at seed placement level.Sweeping position – for good crumbling effect at seed level
- Finer soil is concentrated at the level of the seed. Larger clods and harvest residues remain on the surface to protect against erosion.
Aggressive position – for breaking up the ground
- Angled forwards the tine breaks up the soil from underneath for mulch drilling, mixing harvest trash well into the soil.
- Only possible with the 0.71″ / 18 mm thick tines.
Robust linkage
Robust linkage- The linkage is widely supported. Double-sided Category 2 and 3 free swinging lower linkage and three position adjustment are designed to bring the power harrow as close as possible to the tractor.
- On the LION 403 and 4002 the headstock is fitted with additional side struts.
Gearbox versions
Variable speed gearbox
Fixed speed gearboxLION variable speed gearboxLION 303, LION 303.12 up to 180 hpLION 353.14, LION 403 up to 200 hpLION 3002, LION 4002 up to 250 hpSelect the desired rotor speed by changing gear combinations. PTO shaft is only at a minimal angle with the input shaft placed well back. As a result smooth, quiet operation in the field and at headlands. Cam clutch protection ensures trouble free operation and gearbox cooling fins regulate gearbox oil temperature. A rear PTO shaft is available as an option. - Standard & Optional Equipment
Standard & Optional Equipment
Levelling Board
Levelling BoardThe rear levelling board is standard and is set automatically with the depth of the rear roller – no readjustment is necessary. Consistent distance from the tines over the full working depth range thanks to linear guides on frame.
- Initial depth set using pin-in-hole adjustment.
- This is easily accessible from the side.
The front levelling board (optional) is identical to the rear board.
Field-proven rear rollers
Rear rollers- Conveniently the scrapers can be adjusted from a central point as well as individually.
- A POTTINGER seed drill can be mounted directly to the rear roller and top link. The result is the seed drill and roller work as one follow ground contour changes exactly. Closely mounted to the roller scraper bar keeps overall length to a minimum.
- Coated hard wearing scrapers are standard on 19.68″ / 500 and 21.65″ / 550 mm tooth-packer roller, crumbling-packer roller, pack ring roller and rubber packer roller.
Wheel track eradicators
Wheel track eradicatorsSpring-mounted track eradicators are on all LION power harrows. These are spring-mounted to protect against stones and foreign objects. The working depth can be adjusted without using any tools - Mounting and linkage configurations
Mounting and linkage configurations
Reducing costs is top priority in arable farming. Save money with a power harrow/seed drill combination.
HYDROLIFT
HYDROLIFT- Hydraulic mounting system for independent seed drills with eight and length adjustable linkage.
- Two hydraulic cylinders guarantee maximum lifting power up to 52.91 sht / 2.4 t for larger mounted seed drills.
- Lift height limiter optional.
Implement mounted with a mechanical top link.
Implement mounted with a mechanical top link
Mounted seed drill- VITASEM and AEROSEM seed drills from PÖTTINGER can easily be mounted.
- The centre of gravity is in front of the rear roller – very close to the tractor. The additional weight of the seed drill on the roller provides even better consolidating effect for the seedbed. The gap between the coulter rail and the rear roller is minimised to form a compact unit.
- The piggy-back drill is mounted on the packer roller and guided by the top link using a parallelogram so the packer and seed drill form a single unit. This enables the working depth of the power harrow to be changed by adjusting the roller without having to correct the seed drill top link.
Piggy-back with hydraulic top link
Piggy-back with hydraulic top link- A hydraulic cylinder is also available to pivot the seed drill up over the power harrow.
- Improved of centre of gravity in relation to tractor.
- High ground clearance of drill coulters at headlands.
- Rear rollers
Rear rollers
Cage roller
Cage rollerThe ideal roller for dealing with dry, non-sticky soils. The roller is fitted with strong rods for optimal compression.Diameter: 420 mm, 8 barsDiameter: 540 mm, 11 barsToothed packer roller
Toothed packer rollerThis roller is suitable for all types of soil. The roller leaves behind an optimum, re-packed seedbed with loose, fine soil at seed level. The scrapers are located just above surface level. That is why no earth clods can be lifted away, even in wet conditions, and a perfect capillary structure remains intact for optimum germination. The scrapers can be adjusted centrally and individually. They can simply be pivoted away for cleaning. The hardened scraper plates are reversible for double the service life. Roller diameter: 16.5″, 19.7″ and 21.7″ / 420, 500 and 550 mm. The teeth are hardened right through. Case-hardened scrapers are also available.Crumbling packer roller
Crumbling packer rollerThe teeth are offset at an angle to the left and right. This roller is especially suitable for heavy, clay soils. The result is a deep packing effect with loose crumbling effect just under the surface. Coated scrapers (standard) prevent soil sticking to the roller.Diameter: 525 mmPack ring roller
Pack ring rollerThe packer rings are fully enclosed and have a diameter of 21.7″ / 550 mm with 8 rings per metre of working width. Due to the small hub diameter, the scrapers do not need to contact the roller or be adjusted. The roller produces a corrugated consolidation effect to promote water absorption and allow the soil to breathe. Ideal for stony, damp conditions and heavy organic residues. Harvest residues remain on the surface of the soil and protect the soil against drying out. Case-hardened scrapers are standard.Prism packer roller
Prism packer rollerThe Prism rings are spaced at 12.5 mm or 5.9 inch. This roller handles all operating conditions, including stony ground and larger quantities of harvest trash. The striped formation of re-consolidation promotes water absorption and breathability of the soil that is subject to less compaction in the gap between the rings. Coated scrapers are standard and help prevent soil sticking to the roller.Rubber packer roller
Rubber packer rollerThis roller is ideal for widely varied ground conditions. Especially for use with trailed implements where the load-bearing capacity of other rollers is near the limit. A diameter of 585 mm and the special profiling allows the soil to be compacted in rows. Coated scrapers (standard) prevent soil sticking to the roller. - LION - For tractors up to 250 hp
LION – For tractors up to 250 hp
Proven top level performance up to 184 kW / 250 hp
The machine for the professional with working widths of 9.84″ / 3 and 13.12″ / 4 m. Proven technology for all soil conditions. You can rely on these LION models in the most demanding situations.
Sturdy gear trough and engineered tine mountings
- The high-strength deep gear trough provides the gearbox with excellent torsional strength.
- Large toothed gears, 2.36″ / 60 mm thick rotor shafts with heavyduty tapered roller bearings and wide bearing spacing ensure a long service life.
Tough from the ground up
High-strength deep gearThe deep gear trough is formed from a single piece of steel. The welded central gusset provides additional stability. The bearing housings are welded into the box section with the central gusset before being milled on the CNC machining centre. This sequence ensures exact axis spacing between each rotor; The guarantee for extremely smooth running and a long service life. - High performance power harrow technology
High performance power harrow technology
For the toughest operating conditions

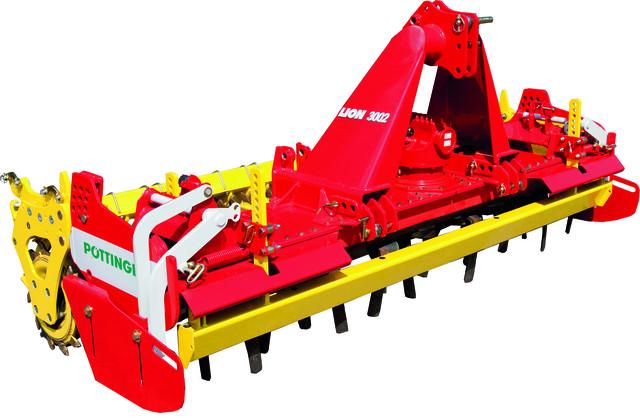

LION 3002
GearboxPower harrow technology for the highest power class
- Robust wide headstock – with additional side struts on LION 4002.
- Clevis-type Category 2 and 3 free swinging lower linkage with three position adjustment are designed to match every tractor.
- The side boards are spring-mounted and can be raised.
- Parallel linkage optional.
- The gearbox features large cooling fins for maximum heat dissipation. A cam-type clutch is integrated into the PTO shaft to protect the transmission. Rear PTO shaft is also available.
- The large-dimensioned, heat-treated precision bevel gears are submerged in semi liquid grease. 2.36″ / 60 mm thick rotor shafts with tapered roller bearings ensure durability. Cartridge sealing guarantees absolute leak-tightness of the gear trough.
- The forged, full-length tine carriers are integrated into casing. This offers best protection against wrapping because the tines work the soil away from the trough. Stones cannot become trapped between the rotors.
- Heat-treated tines are 59″ / 18 m thick for a working depth down to 11.02″ / 280 mm.
Professional kit
Levelling boardSetting up for different soil conditions has to be quick and uncomplicated in this category. Well thought out details make adjustments more straightforward.
- The rear levelling board is supplied as standard and is heightadjusted automatically by the rear roller – no manual adjustment required. Consistent distance from tines over full working depth thanks to linear guides on the frame. Initial depth is set using pin-in-hole adjustment – easily accessible at each end of the levelling board.
- The front levelling board (optional) is identical to the rear board.

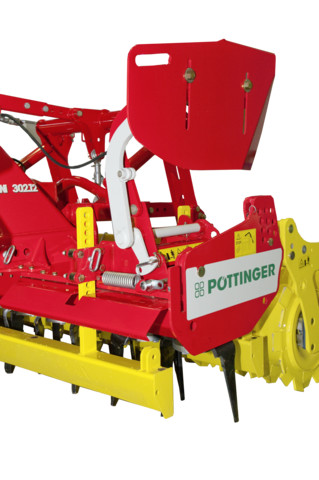

Spring-protected side boardsSpring-protected side boards
- Spring-mounted side plates are standard on the LION 3002 and 4002.
- Parallel linkage optional.
- These can be simply folded upwards during transport. Unique system: The spring does not need to be disengaged to fold up the side boards.
