Mounted ploughs with stronger headstock 4 to 6 furrows – up to 170 hp

Technical data

SERVO 35 S – four-furrowSERVO 35 S – five-furrowSERVO 35 S – six-furrow
CompareCompareCompare
Beam dimensions120 x 120 mm120 x 120 mm120 x 120 mm
Under frame clearance80, cm80, cm80, cm
Interbody distance95
102 cm
95
102 cm
95 cm
Leg dimensions80 x 30 mm80 x 30 mm80 x 30 mm
Body spacing and furrow widths95 (30-35-40-45-50)
102 (32-38-43-48-54) cm
95 (30-35-40-45-50)
102 (32-38-43-48-54) cm
95 (30-35-40-45-50) cm
Power requirement110 – 170 hp110 – 170 hp110 – 170 hp
Weight1215 kg1390 kg1675 kg



SERVO 35 S NOVA – four-furrowSERVO 35 S NOVA – five-furrow
CompareCompare
Beam dimensions120 x 120 mm120 x 120 mm
Under frame clearance80, cm80, cm
Interbody distance88
95
102 cm
88
95 cm
Leg dimensions80 x 30 mm80 x 30 mm
Body spacing and furrow widths88 (28-32-37-42-46)
95 (30-35-40-45-50)
102 (32-38-43-48-54) cm
88 (28-32-37-42-46)
95 (30-35-40-45-50) cm
Power requirement120 – 170 hp120 – 170 hp
Weight1485 kg1688 kg



SERVO 35 S PLUS – four-furrowSERVO 35 S PLUS – five-furrow
CompareCompare
Beam dimensions120 x 120 mm120 x 120 mm
Under frame clearance80, cm80, cm
Interbody distance

95

102 cm

95

102 cm

Leg dimensions80 x 30 mm80 x 30 mm
Body spacing and furrow widths

95 (23-49)

102 (25-54) cm

95 (23-49)

102 (25-54) cm

Power requirement110 – 170 hp110 – 170 hp
Weight1350 kg1585 kg



SERVO 35 S PLUS NOVA – four-furrowSERVO 35 S PLUS NOVA – five-furrow
CompareCompare
Beam dimensions120 x 120 mm120 x 120 mm
Under frame clearance80, cm80, cm
Interbody distance

95

102 cm

95 cm
Leg dimensions80 x 30 mm80 x 30 mm
Body spacing and furrow widths

95 (30-49)

102 (32-54) cm

95 (30-49) cm
Power requirement120 – 170 hp120 – 170 hp
Weight1615 kg1815 kg

Standard Equipment

SERVO 35 S

Mounting option3 point linkage with pins
Mounting categoryCat. III / 2
Cat. III / width 3 on sixfurrow
Solid mould boards27 Wc DURASTAR
36 W
36 UWc DURASTAR
39 UWc DURASTAR
41 W
46 Wc DURASTAR
46 Wd
Point type18″ reversible DURASTAR chisel point, hardened
Interbody distance95 cm
Under frame clearance80 cm
Working width adjustmentmechanical; 5 times over row of holes
Furrow width standard40 cm
Hydraulic connection1 x double acting
Standard equipment includesTools
Landside protection plate at last furrow
Note relating to equipmentAlignment cylinder standard on 6-furrow version

SERVO 35 S NOVA

Mounting option3 point linkage with pins
Mounting categoryCat. III / 2
Solid mould boards27 Wc DURASTAR
36 W
36 UWc DURASTAR
39 UWc DURASTAR
41 W
46 Wc DURASTAR
46 Wd
Point type18″ reversible DURASTAR chisel point, hardened
Interbody distance95 cm
Under frame clearance80 cm
Working width adjustmentmechanical; 5 times over row of holes
Furrow width standard40 cm
Trip leg mechanismHydraulic NONSTOP overload protection
Hydraulic connection1 x double acting
1 x single-acting
Standard equipment includesTools
Landside protection plate at last furrow

SERVO 35 S PLUS

Mounting option3 point linkage with pins
Mounting categoryCat. III / 2
Solid mould boards27 Wc DURASTAR
36 W
36 UWc DURASTAR
39 UWc DURASTAR
41 W
46 Wc DURASTAR
46 Wd
Point type18″ reversible DURASTAR chisel point, hardened
Interbody distance95 cm
Under frame clearance80 cm
Working width adjustmentHydraulic; stepless
Hydraulic connection2 x double acting
Standard equipment includesTools
Landside protection plate at last furrow

SERVO 35 S PLUS NOVA

Mounting option3 point linkage with pins
Mounting categoryCat. III / 2
Solid mould boards27 Wc DURASTAR
36 W
36 UWc DURASTAR
39 UWc DURASTAR
41 W
46 Wc DURASTAR
46 Wd
Point type18″ reversible DURASTAR chisel point, hardened
Interbody distance95 cm
Under frame clearance80 cm
Working width adjustmentHydraulic; stepless
Trip leg mechanismHydraulic NONSTOP overload protection
Hydraulic connection2 x double acting
1 x single-acting
Standard equipment includesTools
Landside protection plate at last furrow



*Always confirm model specifications & pricing with a Gendore Product & Sales Specialist
SERVO_35S

Technology

  • SERVOMATIC

    SERVOMATIC

    Unique precision control centre

    Setting up the plough correctly ensures smooth and productive ploughing. PÖTTINGER makes it easy to adjust the plough to the tractor and soil conditions using the SERVOMATIC control centre.

    SERVOMATIC for SERVO ploughs with mechanical furrow width adjustment

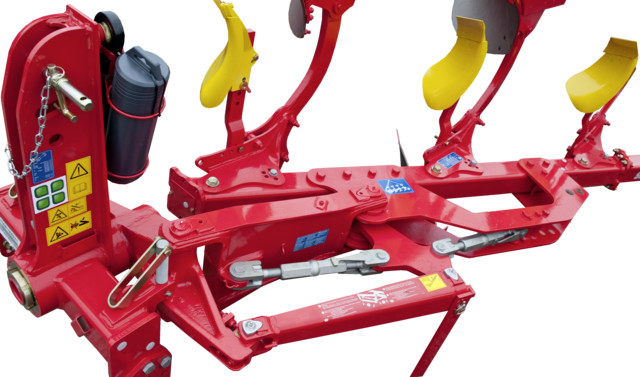

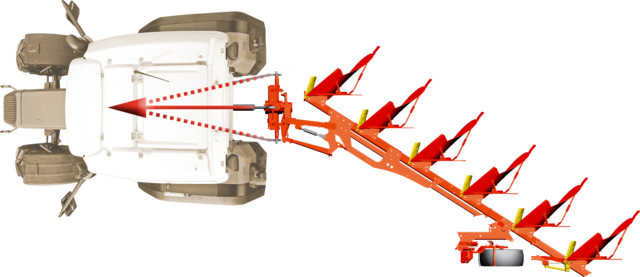

    SERVOMATIC adjustment
    SERVOMATIC adjustmentThe furrow width of the leading body and the pulling point can be adjusted separately with ease and precision.

    • Use the rear turnbuckle to adjust the furrow width of the leading body.
    • Use the front turnbuckle to adjust the pulling point.
    • The two functions do not influence each other.
    • A few simple adjustments and the plough is set correctly the first time.
    • No compensation or re-adjustment needed.
    • The wide, infinitely-variable range ensures a rapid match to all tractors and operating conditions.

    Optimum pulling point adjustment guarantees low landside pressure, resulting in less wear and low fuel consumption.

  • Depth wheels for perfect tracking

    Depth wheels for perfect tracking

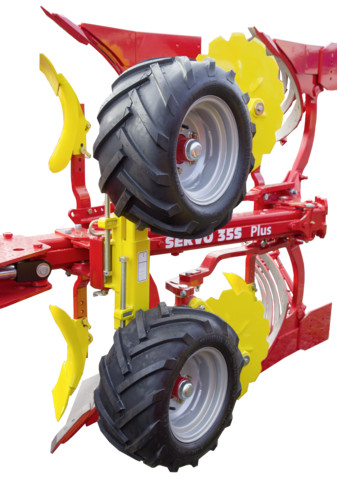

    Dual depth wheels

    Dual depth wheel - steel
    Dual depth wheel – steelDual depth wheel - pneumatic tyre
    Dual depth wheel – pneumatic tyreDual depth wheel - pneumatic tyre, hydraulically adjustable

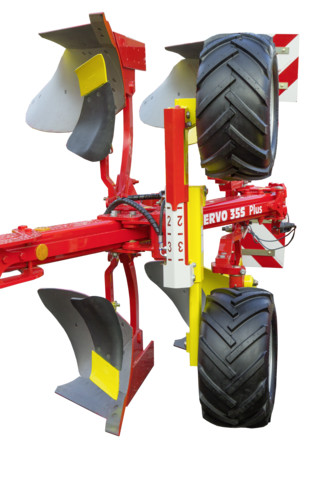

    Dual depth wheel – pneumatic tyre, hydraulically adjustableFrom the 4-furrow version, the wheel may be positioned at the last or penultimate body. The mounting can be moved forward for fenceline ploughing so that it is close to the plough body. The wheels are infinitely adjustable via turnbuckles.

    • Dual depth wheel – steel
    • Dual depth wheel – pneumatic tyre
    • Dual depth wheel – pneumatic tyre, hydraulically adjustable

    Infinitely-variable hydraulic depth adjustment – one double-acting connection required.

    Pendeltasträder

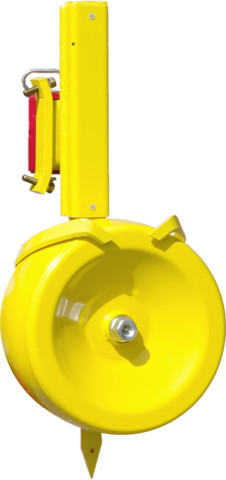

    Pivot depth wheel - steel, without damping
    Pivot depth wheel – steel, without dampingPivot depth wheel - pneumatic tyre, without damping
    Pivot depth wheel – pneumatic tyre, without dampingPivot depth wheel – pneumatic tyre, hydraulic damping
    Pivot depth wheel – pneumatic tyre, hydraulic dampingThe depth wheel pivots over during reversing. A pin moves it into the correct position for travel close to the beam. Depth adjustment via a turnbuckle. On 4-furrow ploughs upwards, the wheel may be positioned at the last or penultimate body.

    • Pivot depth wheel – steel, without damping
    • Pivot depth wheel – pneumatic tyre, without damping
    • Pivot depth wheel – pneumatic tyre, hydraulic damping, can be used as transport wheel, located at last body

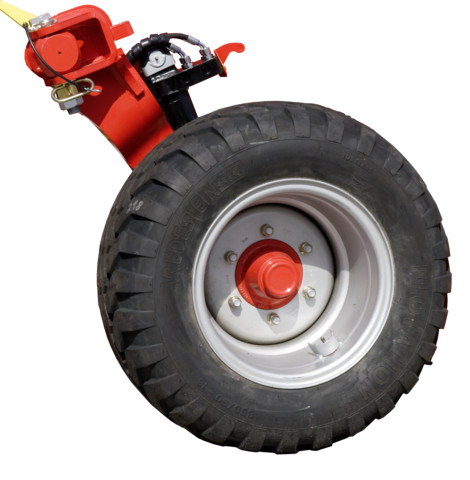

    Transport depth wheel – pneumatic tyre

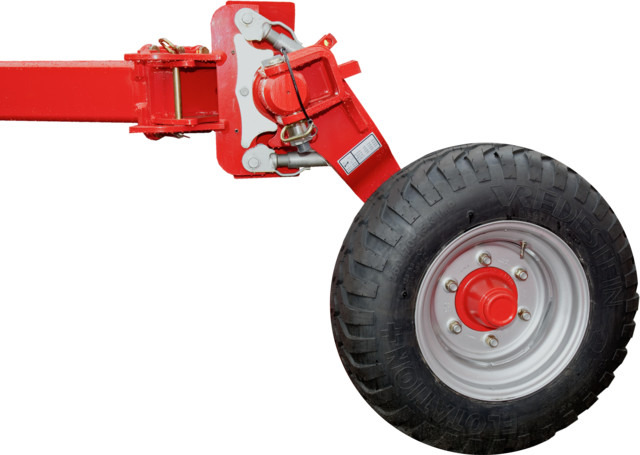

    Rear-mounted transport pivot wheel
    Rear-mounted transport pivot wheelForward-mounted transport pivot wheel
    Forward-mounted transport pivot wheelOffers best plough tracking and optimum performance on the road. Move into transport position by pivoting wheel and relocating a pin. The transport function may be retro-fitted.

    • Rear-mounted transport pivot wheel
    • Forward-mounted transport pivot wheel – ideal for fenceline ploughing on 5-furrow ploughs upwards

    The self-aligning wheel is hydraulically damped and swings backwards smoothly. The wheel can be converted into the transport wheel with a few simple adjustments.

    • Forward-mounted transport pivot wheel, hydraulically adjustable
    • Infinitely-variable hydraulic depth adjustment – one double-acting connection required.

  • Original Parts

    Original Parts

    Original Parts

    PÖTTINGER Original Parts meet the highest demands in terms of functionality, reliability and performance. Durability and top performance are characteristics that PÖTTINGER is committed to delivering.

    CLASSIC

    CLASSIC – the classic line of spare and wear parts. PÖTTINGER CLASSIC mould boards are carbonised to best withstand wear to the surface. The carbonising process extends service life by 20 % compared to conventional 3-layer steel. At PÖTTINGER both sides are carbonised.

    Afterwards the outside of the steel is harder and more resistant to wear. The core, on the other hand, remains flexible. This prevents fractures and cracks from occurring when the material is subjected to stress. This means that the wear parts are able to withstand stress for longer. PÖTTINGER’s aim is to deliver durability and top performance. That is why we are setting a new standard.

    DURASTAR – keeps its promise

    For demanding operating situations.

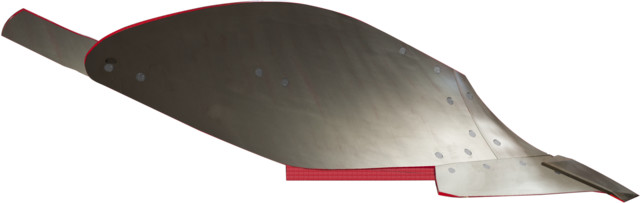

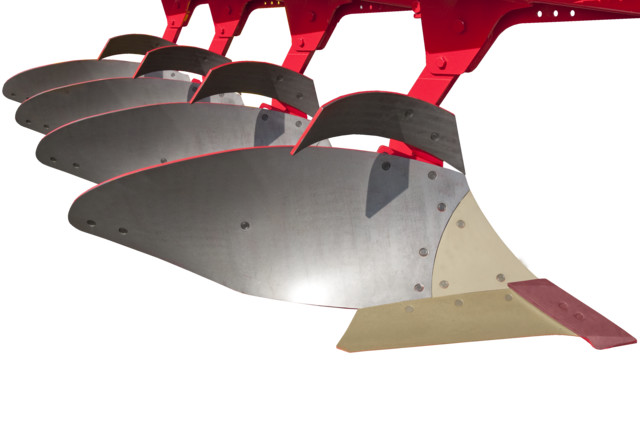

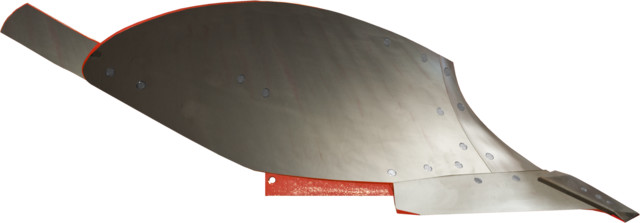

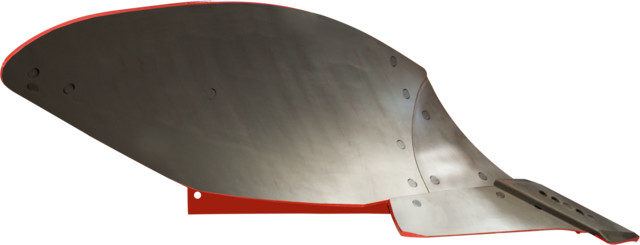

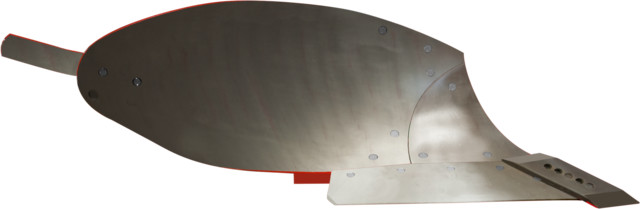

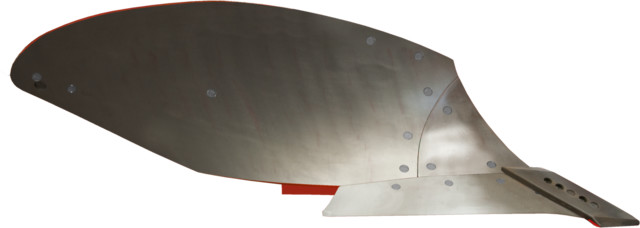

    DURASTAR mould boards

    The standard version of our DURASTAR 46 Wc, 27 Wc, 36 UWc and 39 UWc mould boards are case hardened. That is how you can work cost effectively and not waste valuable time changing spare parts.

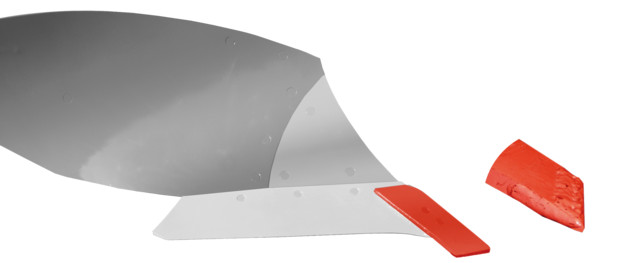

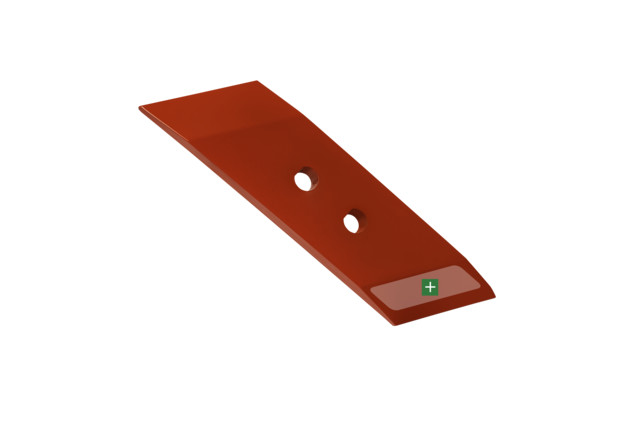

    DURASTAR reversible points

    DURASTAR reversible point
    DURASTAR reversible point

    The tungsten carbide armour on the underside of our DURASTAR plough points reduces wear, increases performance and delivers greatly increased replacement intervals. Because the points can be reversed it is possible to use both sides, which ensures optimum utilization of the material and leads to a longer service life. The armouring on these reversible DURASTAR points therefore extends their service life by around 50%.

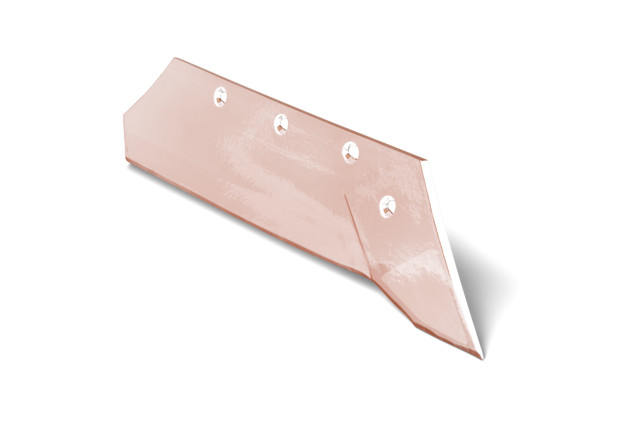

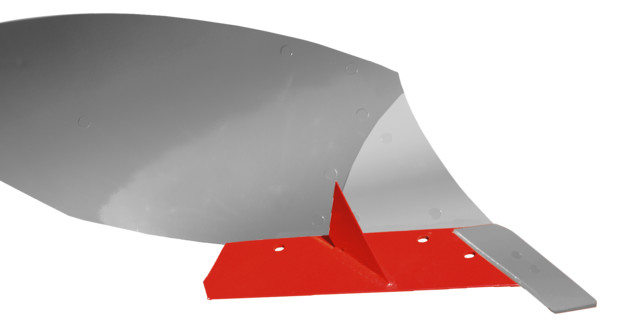

    DURASTAR combined share and point

    DURASTAR combined share and point
    DURASTAR combined share and point

    Like the plain share, the combined share and point is also made from hardened boron steel. The material thickness of 11 mm ensures an extended service life. Single-piece combined shares and points designed for heavy duty wear resistance ensure reliable penetration and are especially suitable for stony soil and shallow ploughing.

    Your benefits at a glance

    • Low draft for high driving speed and reduced power requirement.
    • Perfect for stony and sticky soils.
    • Ideal for shallow ploughing.
    • Improved soil flow reduces sticking.
    • Developed and manufactured by PÖTTINGER.

  • SERVOMATIC PLUS

    SERVOMATIC PLUS

    Intelligent hydraulic adjustment system

    SERVO PLUS with hydraulic furrow width adjustment

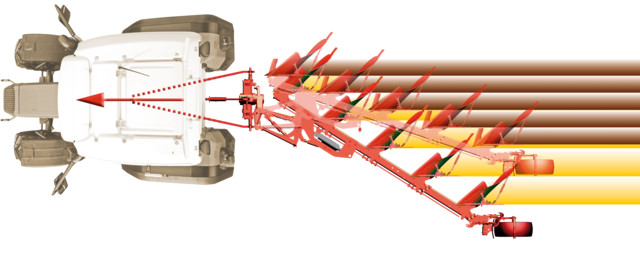

    SERVOMATIC PLUS
    SERVOMATIC PLUSDifferent working conditions and soil structures require different pulling forces. With hydraulic SERVO PLUS furrow width adjustment the plough is always precisely matched to the soil conditions.

    • Optimum tractor efficiency and ploughing results at all times.
    • All additional adjustments adapt to it correctly and automatically.
    • Optimum adaptation to tractor power, slopes and field shapes.
    • Easy ploughing of tight corners and headlands.
    • Optimum fence-line ploughing from three-furrow models and above.

    Durable construction

    Important pivot points have wear-resistant, replaceable spring steel bushes for the highest pressure demands, and the pivot points can be lubricated.

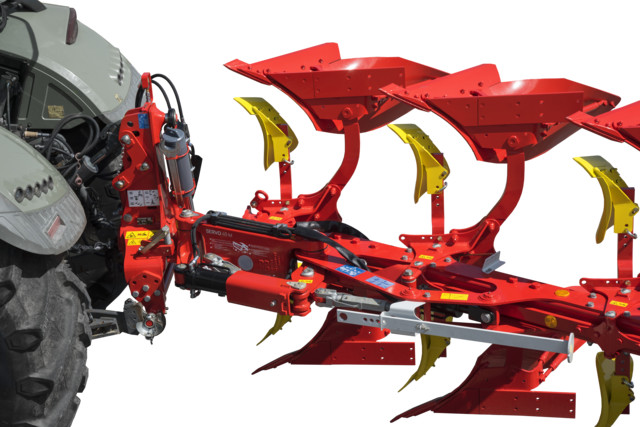

    NEW: SERVO 45 M PLUS

    Up to 5 furrows, up to 240 hp.

    Unique

    Furrow width adjustment without lower linkage side to side movement.

    • The fine adjustment system makes it possible to set-up once 100% to different tractor lower linkage dimensions, even if they deviate greatly from the norm.
    • When you set the furrow width, there is then no need to adjust the front furrow width and pull line. The lower linkages remain parallel with no crabbing, essential for a straight furrow. Consistent landside pressure at all furrow widths.
    • Memory cylinder technology for two functions as option. Beam pivot system and furrow width – the plough is pivoted and rotated, then re-adjusted to the pre-selected furrow width.

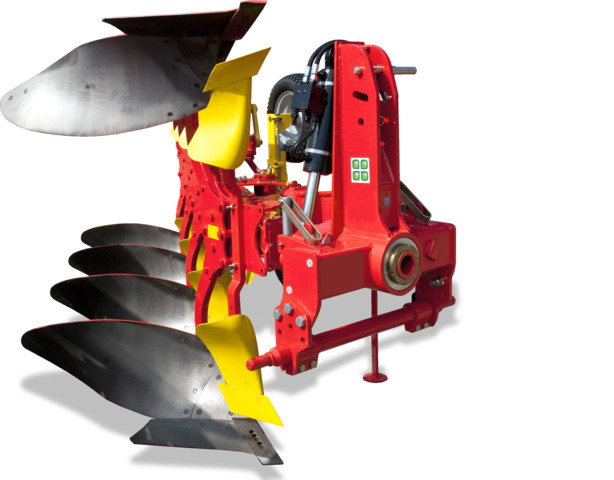

    SERVO PLUS adjustment system with lever control and pivot point located away from the plough beam

    • Smooth adjustment thanks to long adjusting lever.
    • Protects the parallel linkage and pivot points.
    • Clearly visible furrow width indicator.

    The SERVO PLUS system is designed to allow hydraulic furrow width adjustment during ploughing. The hydraulic cylinder has a check valve so that the hoses are not under pressure during ploughing.

  • SERVO NOVA

    SERVO NOVA

    Hydro-mechanical stone protection

    NONSTOP ploughing in stony soil

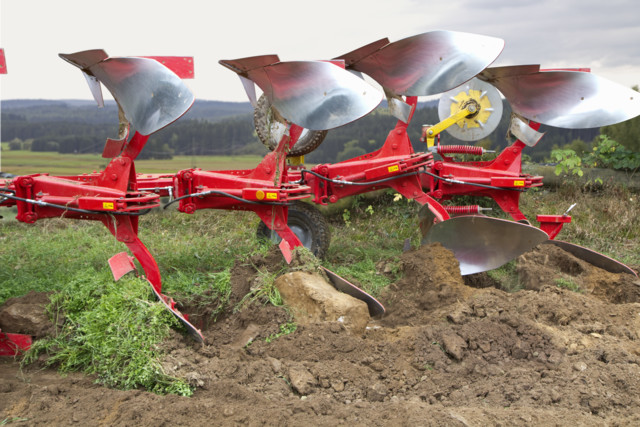

    NOVA - hydraulic stone protection in use

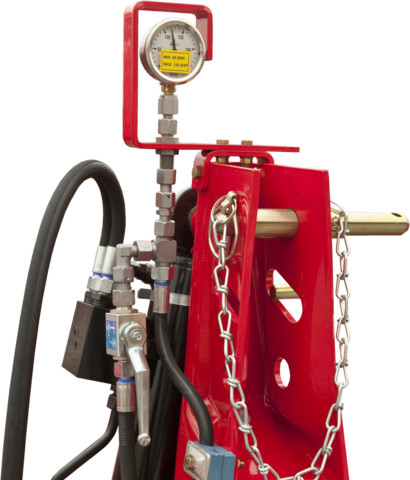

    NOVA – hydraulic stone protection in useSERVO pressure gauge
    SERVO pressure gaugeSERVO NOVA ploughs with stone protection gives maximum reassurance. Ploughing without stopping means full productivity even in stony soil.SERVO NOVA – ploughs with hydraulic stone protectionA hydraulic overload protection system with adjustable triggering force protects the plough against damage.

    This system has a very clever triggering pressure system: The leg does not trip until the set resistance has been reached. Then the pressure required to trigger the leg reduces as the leg rises. No digging or loosening of big rocks. This protects the whole plough.

    • On re-penetrating the soil, the pressure increases to ensure reliable penetration in heavy, dry soil.
    • Set the trigger point quickly and easily using the pressure gauge on the headstock.

    SERVO PLUS NOVA

    These talented performers with hydraulic furrow width adjustment and hydraulic trip leg system offer maximum reliability and flexibility.

    Proven system

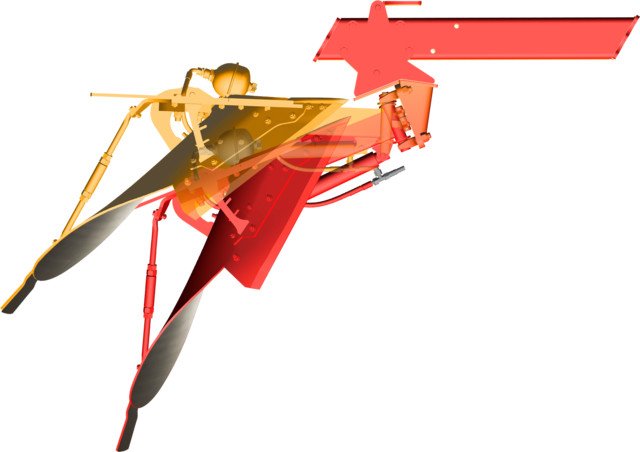

    NOVA system

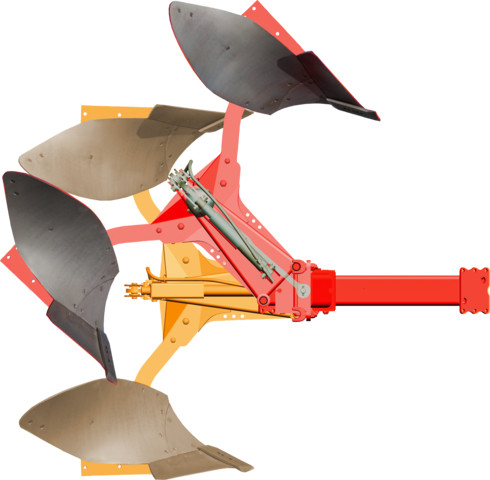

    NOVA systemNOVA scheme
    NOVA schemeWith its variable hydraulic triggering pressure, the SERVO NOVA system adapts the plough to different soil types. Each pair of plough bodies has its own hydraulic accumulator which allows upward movement to the side by up to 40 cm. The lubricated pivot points and additional shear bolts guarantee a long service life.

    • The central filling system is standard on all SERVO NOVA ploughs.
    • Smooth, flexible triggering protects both plough and tractor.
    • The gas accumulators are mounted on the inside of the plough legs for protection.

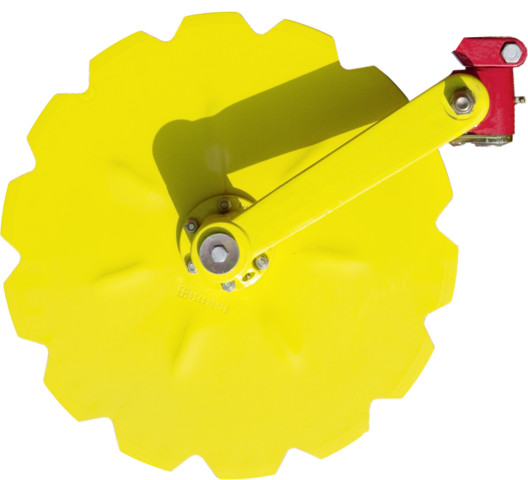

    • Spring-mounted disc coulters roll over rocks without the risk of damage.

    NEW: SERVO 45 M PLUS NOVA

    Up to 5 furrows, up to 240 hp

  • Standard & Optional Equipment

    Standard & Optional Equipment

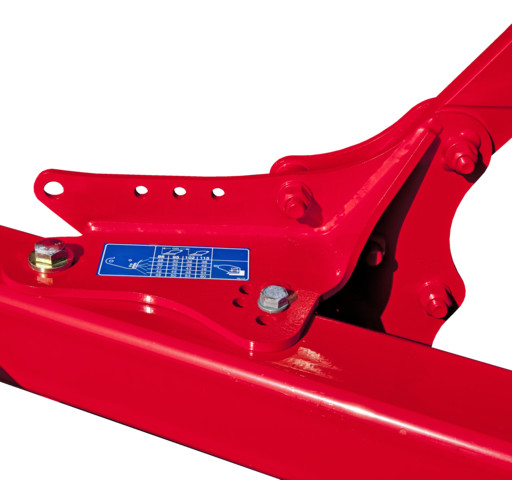

    The beam link – a central component

    Beam link
    Beam linkThe conical shape of the beam link with wide spaced mounting on the reversing unit means it can absorb high torque loads. The pins in the lubricated pivot points have anti-twist locks. Replaceable bushes in the reversing unit and bearing block pivot points guarantee a long service life.

    Beam pivot system available on standard ploughs

    Beam pivot system
    Beam pivot systemWith wide furrows, long inter-body spacing and when lifting clearance is too low, the plough beam is hydraulically pivoted while reversing. The plough is narrow for road transport and parking. The hydraulic cylinder has a check valve so that the hoses are not under pressure during ploughing.

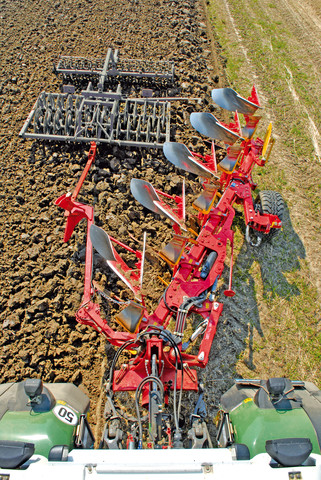

    Ploughing with a furrow press

    Furrow press on the plough
    Furrow press on the plough

    • The press is collected by the press arm’s large jaw. It is hydraulically released before the plough is reversed.
    • A five-position mounting means the press can be set for different working widths. A tension spring pivots the press arm into the set catching position after releasing.
    • On SERVO PLUS ploughs, the catching position is maintained precisely even if the furrow width is changed.
    • The press arm can be fixed within the tractor width for road transport.
    • The entire press arm can be removed quickly and easily.

  • Bolted reinforcements where stress on beam is highest

    Bolted reinforcements where stress on beam is highest

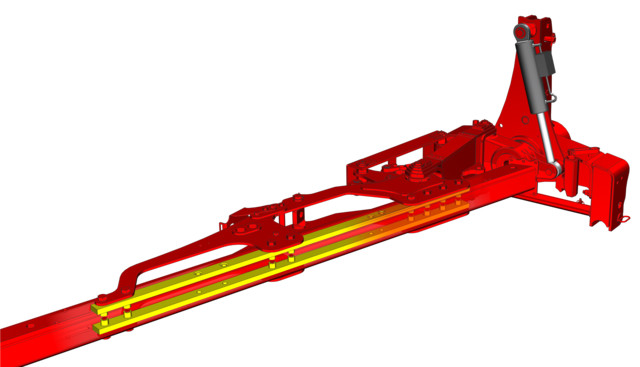

    Backbone
    BackboneUnique on the marketOn SERVO series 35 and 45 ploughs, the inside of the full-length micro-alloyed fine-grain steel plough beam tube is strengthened by two bolted reinforcements.

    • Maximum plough beam rigidity at the point of maximum bending stress.
    • The inner web increases resistance to flexing by up to 25%.
    • The firm seating of the bolted reinforcement forms a high-strength unit.
    • No through bolts that could work loose. Secured using Nord-Lock washers.

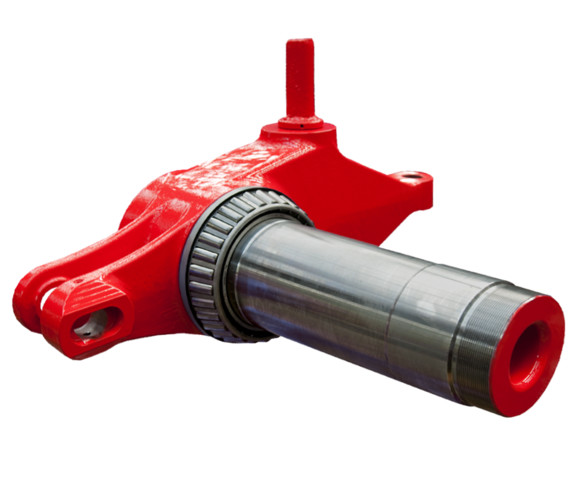

    Intelligent solution

    The oversized main plough beam bearing extends 1330 mm (2200 mm on SERVO S version) to distribute forces acting on the beam up to well beyond the second body. The thick walls of the plough beam tube provide a secure seat for mounting plough legs and skims.

  • The 140 hp and 170 hp class

    The 140 hp and 170 hp class

    The size of tractor used on medium sized arable farms continues to increase, so demands on the plough also continue to grow. The SERVO 35 range up to 140 hp matches this segment. For tractors up to 170 hp, the SERVO 35 S range featuring the SERVO 45 reversing unit is an ideal match.

    SERVO 35 / 35 S

    SERVO 35
    up to 140 hp
    SERVO 35 S
    up to 170 hp
    Furrows2 / 4 / 54 / 5 / 6
    Mounting axleCat. 2 / Cat. 3, width 2Cat. 3 / Width 2
    Dimensions120 x 120 x 10 mm
    Underbeam clearance80 cm
    Body holder80 x 30 mm
    Working width per body
    Interbody clearance 95 cm30 / 35 / 40 / 45 / 50 cm
    Inter-body spacing 102 cm32 / 38 / 43 / 48 / 54 cm
    SERVO PLUS 95 cm23 – 49 cm
    SERVO PLUS 102 cm25 – 53 cm

    SERVO 35 PLUS / SERVO 35 S PLUS with hydraulic furrow width adjustment

    SERVO 35 NOVA / SERVO 35 S NOVA with hydro-mechanical stone protection

    SERVO 35 PLUS NOVA / SERVO 35 S PLUS NOVA with hydraulic furrow width adjustment and hydro-mechanical stone protection

    Headstock

    Headstock
    Headstock

    • Double acting reversing cylinder with check valve; hoses are not under pressure during ploughing.
    • The full-length mounting axle can be adjusted to four positions and has an anti-twist lock. Correct positioning on the tractor and optimum clearance at all times.

    Three top link positions

    • Including a slotted hole for faster penetration and lower linkage control. The extra-thick top link retention plate is hardened and guarantees a snug fit for the top link pin.

    Reversing unit and turnover shaft

    Reversing axle
    Reversing axle

    • The Reversing unit and turnover shaft has a diameter of 100 mm on the SERVO 35 and 110 mm on the SERVO 35 S.
    • The reversing unit made from tempered cast steel is not welded to the reversing axle. The hydraulic hoses pass through the hollow shaft preventing trapping of the hoses during reversing.
    • The heavy-duty tapered roller bearings are reliably protected from dirt and locked with an adjustable castellated nut.
    • Beam angle is adjusted using two turnbuckles.

    Body holder

    Bracket
    Bracket

    • The tempered leg mounting brackets have a large clamping surface to resist high stress. The bracket surrounds the plough beam with a large contact area for optimum transfer of forces to the beam.

    Solid leg mounting on two sides

    • Double-sided shear protection via shear bolts.
    • Five furrow widths easily selected via hole matrix by moving a bolt.

  • Proven plough body configuration

    Proven plough body configuration

    Landsides
    Landsides

    Body

    The frog is tempered to provide maximum strength and stability for mouldboards or slats. The single-piece shares sit on a forged raised part to give a precise, durable joint.

    Angle adjustment

    An offset allows adjustment of body angle for reliable penetration, even in extremely hard, dry soils.

    Large landsides for reliable plough tracking

    The landsides can be used four times to ensure cost efficient use of the parts. Landside protector standard on last body.

    DURASTAR reversible points are standard

    Chisel points with deposition welding. Single-piece points are reversible for reduced operating costs. The single-piece points are manufactured from hardened boron steel and guarantee good plough penetration in all soil conditions.

    Shares

    All shares are manufactured from hardened boron steel. Increasing the hardened wear zone extends service life by up to 50%. The 11 mm thick shares have a total width of 150 mm. The forward taper aids good penetration and has the effect of being self-sharpening.

    Share blades

    Share blades
    Share bladesShare blades made from 8 mm hardened fine grain steel are used on mouldboards in the area of greatest wear. They are quick and easy to replace.

    Full-length share points

    with powerful wear points. A large angle guarantees good penetration. Highly suitable for stony soils and shallow ploughing. Armoured share points are available as an option.

    Knife shares

    Knife share
    Knife shareVertical blades welded to the shares improve crumbling as they split the furrow ridge down the middle.

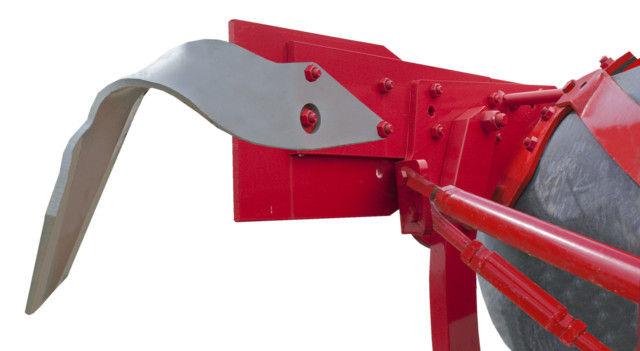

    Furrow widener for wide tyres

    Furrow widener
    Furrow widenerFurrow wideners are available as an option for all ploughs and mould boards. These can only be used without disc coulters.

  • Mould boards for all types of soil

    Mould boards for all types of soil

    DURASTAR

    DURASTAR Mould board
    DURASTAR Mould boardHardened right through and carbonisedHardened right through means consistent hardness across the whole cross-section. Carbonised: Substrate material core is elastic. Proven plough mould boards, hardened right through, guarantee excellent results in compact soils (heathland, black-earth soil, etc.). Mould boards with a special carbonised layer are characterised by impressive durability thanks to a super-hard 2.3 mm-thick surface on both sides of the board and a more elastic core. This combination ensures optimum ploughing results in soils with a variable or sticky structure.

    • Longer service life than 3-layer plate.
    • Improved soil flow reduces sticking.
    • Developed and manufactured by PÖTTINGER.
    • DURASTAR 27 Wc, 46 Wc, 36 UWc and 39 UWc mould boards

    Mouldboards

    8 mm hardened fine grain steel – extremely resistant to wear.

    Slatted boards
    Slatted boardsDURASTAR slatted mould boardsSlats 12 mm thick and hardened right through – extremely resistant to wear. Gap between slats gets wider further back to prevent stones from becoming trapped.
    Chisel points
    Chisel pointsArmoured chisel points and chisel sharesChisel points and shares with deposition welding are also available for extreme wear resistance.

    Long, curved, mould board

    27 Wc DURASTAR

    27 Wc DURASTAR
    27 Wc DURASTARLow drag resistance, well suited to working on slopes. Ideal for ploughing meadow and flat land with good furrow clearance. Suitable for higher forward speeds.

    • Working width up to 45 cm
    • Working depth up to 25 cm
    • Furrow clearing up to 48 cm

    36 W
    36 W36 WLong, curved mould board for heavy, sticky soil. Moderate working speed.

    • Working width up to 45 cm
    • Working depth up to 25 cm
    • Furrow clearing up to 40 cm

    41 W

    41 W
    41 WLong, curved mould board for heavy, sticky soil. Moderate working speed.

    • Working width up to 45 cm
    • Working depth up to 30 cm
    • Furrow clearing up to 45 cm

    46 Wc DURASTAR

    46 Wc DURASTAR
    46 Wc DURASTARGood crumbling effect and suitable for slopes, low drag resistance in loam and clay soils, also light soil types. A body for high working speeds without overlapping. Wide furrow clearance, low draft and excellent turning of the soil ridge are the hallmarks of this mouldboard.

    • Working width up to 54 cm
    • Working depth up to 35 cm
    • Furrow clearing up to 53 cm

    Universal body

    36 UWc DURASTAR

    36 UWc DURASTAR
    36 UWc DURASTARUniversal body with very good furrow clearance and excellent crumbling at normal working speed. Large quantities of harvest trash are ploughed in tidily. A low-drag body, suitable for most soils.

    • Working width up to 50 cm
    • Working depth up to 30 cm
    • Furrow clearing up to 48 cm

    39 UWc DURASTAR

    39 UWc DURASTAR
    39 UWc DURASTARLarge universal mouldboard with very good furrow clearance and excellent crumbling at normal working speed. Large quantities of harvest trash are ploughed in tidily. A low-drag body, suitable for most soils.

    • Working width up to 54 cm
    • Working depth up to 35 cm
    • Furrow clearing up to 50 cm

    Slatted boards

    35 WSS

    35 WSS
    35 WSSSlatted body with strong turning characteristics, specially suitable for peaty, medium-density and sticky soil. Especially wide furrow clearing and excellent crumbling.

    • Working width up to 54 cm
    • Working depth up to 35 cm
    • Furrow clearing up to 53 cm

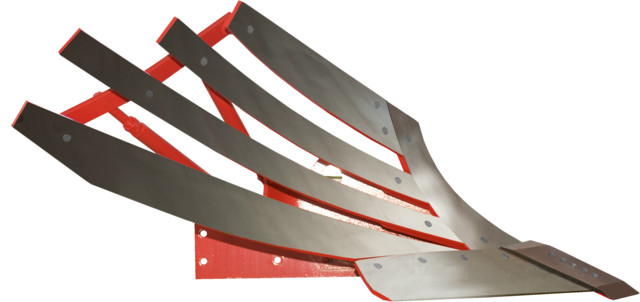

    38 WWS

    38 WWS
    38 WWSLow-drag resistance body with curved slats for excellent crumbling effect in medium to heavy soils (loam, clay). Good furrow clearance – ideal for wide tyres.

    • Working width up to 54 cm
    • Working depth up to 30 cm
    • Furrow clearing up to 50 cm

    Synthetic mouldboard

    50 RW
    50 RW50 RWMaterial Robalon S, 15 mm thick, metal share blade, geometry and frog same as 46 W. Long, curved, high synthetic mouldboard for soils with low stability. Wide furrow clearance. Soil flows easily along surface. Use only with share point Not suitable for stony ground.

    • Working width up to 54 cm
    • Working depth up to 35 cm
    • Furrow clearing up to 53 cm

  • For a tidy surface and furrow

    For a tidy surface and furrow

    A clean disc coulter cut guarantees precise turning of the ridge and a clean furrow.

    Coulter shapes

    Adjustable bracket

    One bracket for Standard and PLUS ploughs. Depth is adjusted using toothed segments.

    • Mounting moved forward so the disc coulter is in front of the skimmer. Plenty of space for large quantities of maize straw and organic matter.
    • Mounting moved back so the disc coulter is close to the skimmer for light, free-flowing soil and shallow ploughing.
    Scalloped disc coulter
    Scalloped disc coulterDisc coulters, smooth or scalloped

    • 500 or 590 mm diameter with good self-cleaning characteristics.
    • Star-shape indentations keep disc coulters rotating.
    • Especially wide bearing spacing for highest durability.
    • Scalloped disc coulters rotate well in high levels of organic matter.
    Smooth disc coulter
    Smooth disc coulterSpring-mounted coulter discSpring-mounted coulter discs are available for SERVO NOVA ploughs with overload protection.

    Knife coulter

    Knife coulter
    Knife coulterThe landside knife coulter is a cost effective alternative to the disc coulter – from 22 cm working depth.

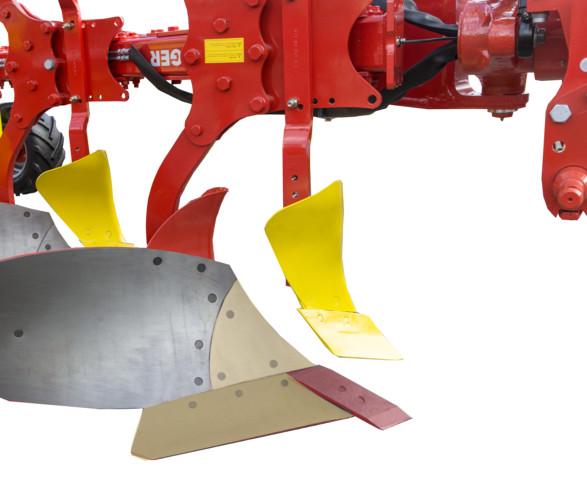

    Skimmer adjustable without tools

    Suitable skimmer shapes mean there are no crop residues on the surface after ploughing.

    Same shank for all skimmers with multi-stage depth adjustment – no tools required. Distance from the plough body is adjustable via the hole matrix. The skimmer is equipped with a shear bolt.

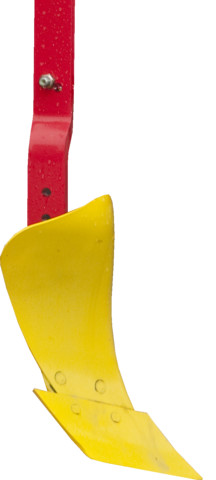

    V1 universal skimmer

    V1 universal skimmer
    V1 universal skimmer

    • Suitable for all conditions including maize straw

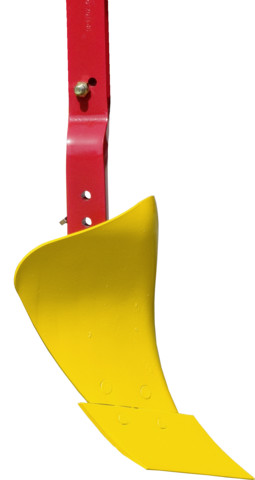

    V2 maize skimmer

    V2 maize skimmer
    V2 maize skimmer

    • For large quantities of organic matter, catch crops and deep tillage.

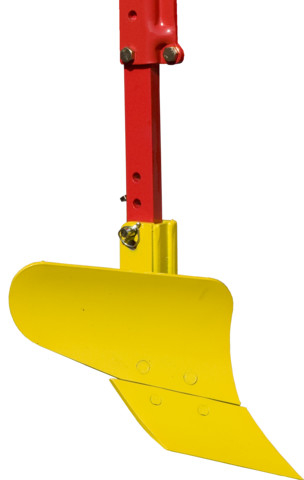

    V3 universal skimmer

    V3 universal skimmer
    V3 universal skimmer

    • Suitable for shallow working depths.

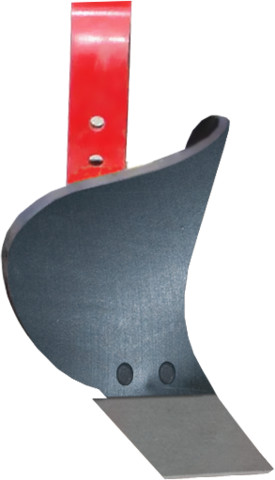

    V4 RW synthetic fertilizer skimmer
    V4 RW synthetic fertilizer skimmerV4 RW synthetic fertilizer skimmer

    • For light, non-cohesive and sticky soil.

    V5 maize skimmer

    V5 maize skimmer
    V5 maize skimmer

    • Large, high skimmer board suitable for working in high volume harvest residues and for very deep ploughing.

    Trashboards

    Trashboard
    TrashboardAlternatives for shallow ploughing and stony soil.

    Leg deflector

    Leg deflector
    Leg deflectorLeg deflectors improve ploughing results in large quantities of organic matter while protecting the leg.

VIDEOS


    •   New Holland
    •   New Holland Construction
    •   Hustler Equipment
    •   Giltrap Equipment
    •   Zago Equipment
    •   Alpego Equipment
    •   Kverneland Taarup Equipment
    •   Vicon
    •   McHale
    •   BA Group
    •   Erth Engineering
    •   Taege
    •   Fleming
    •   Keltec
    •   Karcher
    •   Pottinger
    •   Gamberini
    •   HW Industries
