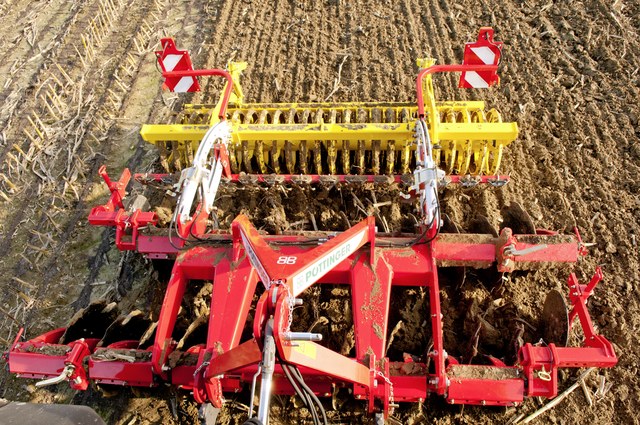

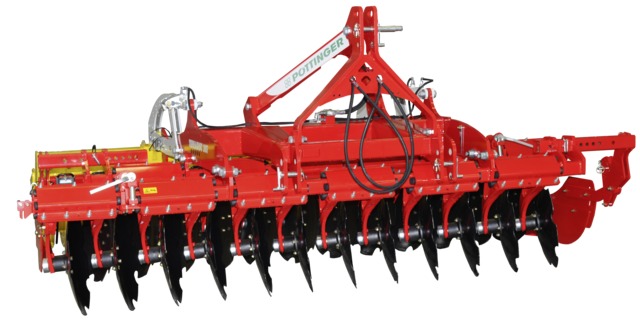

TERRADISC

Rigid compact disc harrows – 3, 3.5 and 4 m working width

Technical data

TERRADISC 3001TERRADISC 3501TERRADISC 4001
CompareCompareCompare
Working width3 m3,5 m4 m
Number of discs24 pcs.28 pcs.32 pcs.
Disc diameter58 cm58 cm58 cm
Disc spacing12,5 cm12,5 cm12,5 cm
Gang spacing90 cm90 cm90 cm
Under frame clearance75 cm75 cm75 cm
Power requirement95 hp115 hp135 hp
Transport width3 m3,5 m4 m
Weight of basic version1470 kg1660 kg1910 kg
Weight cage roller Ø 540 mm325 kg480 kg
Weight cage roller Ø 660 mm425 kg610 kg
Weight double cage roller520 kg760 kg
Weight knife ring roller Ø 540 mm420 kg470 kg610 kg
Weight pack ring roller Ø 550 mm595 kg710 kg820 kg
Weight Rotopack roller400 kg
Weight rubber packer roller Ø 590 mm560 kg
Weight CONOROLL Ø 540 mm430 kg510 kg620 kg
Weight Tandem CONOROLL Ø 560 mm685 kg950 kg

Standard Equipment

TERRADISC
MountingRear three-point
Mounting optionThree point linkage c/w enclosed lower link pins
Mounting categoryCat. II / 2
Working depth settingHydraulic depth preselect
Disc hubsTwin race ball bearings with six lip labyrinth seal
Hydraulic connection1 x double acting
Standard equipment includesEdging boards
Hydraulic edge element folding
Mounting for rear roller
*Always confirm model specifications & pricing with a Gendore Product & Sales Specialist
TERRADISC

Technology

  • Linkage and frame

    Linkage and frame

    Adjustable headstock

    Adjustable headstock
    Adjustable headstockTERRADISC 3001 / TERRADISC 3501 / TERRADISC 4001Tractors with up to 190 hp have a huge range of hitch geometries. The range of mounting options offered by the headstock ensures excellent ground penetration and sufficient transport height.Three lower linkage heights with Cat. 2/2 and Cat. 3/3 clevis-type mounting lugs are standard. The headstock angle can be adjusted and with three top linkage positions optimum adaptation to any tractor is guaranteed.

    Heavy duty frame

    Heavy duty frame
    Heavy duty frameThe compact frame is a trademark of the mounted TERRADISC harrow. Unique open frame design provides a perfect view of both disc gangs from the driver’s seat.

    • The first gang of discs is very close to the tractor for a very favourable centre of gravity.
    • Compact, short design guarantees smooth and stable operation of the implement.

  • TWIN ARM SYSTEM

    TWIN ARM SYSTEM

    A uniform surface finish with the best mixing performance meets farmer’s and contractor’s expectations in the field. To achieve this, PÖTTINGER has optimised the geometry, size, mounting angle and penetration angle of the discs. The result: Low drag resistance, perfect ground penetration, best crumbling and mixing effect.

    TWIN ARM – the heart of the machine

    TWIN ARM
    TWIN ARMTwo solid forged carrier arms are welded to a very wide clamping bracket. This ensures that the discs always retain their position and angle. Even in heavy soil it is impossible for them to deviate to the side – hard tyre tracks are broken up reliably.The rugged scalloped discs made of special heat-treated steel have a diameter of 58 cm. Eight discs per metre of working width equate to a spacing of just 12.5 cm. The optimised interplay of ground penetration angle and mounting angle ensure perfect performance. The offset configuration of the aggressive discs mixes harvest residues effectively into the soil.

    NON STOP stone protection

    NON STOP stone protection
    NON STOP stone protectionProven over many years in the field, the maintenance-free NON STOP trip protection system features 40 mm thick rubber elements. The clamping brackets are mounted on a thick-walled box section frame. Four rubber elements between each wide clamping bracket and the box section provide the discs with high penetration power.
    Disc bearings
    Disc bearingsFast operating speeds and working depths down to 12 cm mean the disc bearings have to withstand considerable stress. That is why PÖTTINGER has implemented high-quality bearings for an extended service life.Die speziellen zweireihigen Schrägkugellager wurden aus der Baumaschinen- Industrie übernommen. Ruggedness and reliability are guaranteed as a result and impacts are absorbed perfectly.

    • The sealed, twin-race tapered bearings are completely maintenance-free.
    • A labyrinth seal provides perfect protection for the bearing.
    • A metal cover encapsulates the labyrinth seal for additional security.
    • The bearings are fitted to the disc carrier arm by a stub axle.
    • The nuts are protected by caps mounted on the same axle bolt.

    Generous inter-disc clearance

    Generous inter-disc clearance
    Generous inter-disc clearanceIdeal cultivating results are achieved thanks to optimum spacing of the discs.

    • Plenty of space between discs and carrier arms.
    • The carrier arms are angled facing the direction of rotation so that there is no risk of stones or harvest trash becoming lodged between the disc and arm.
    • A large clearance between the disc and clamping bracket means large quantities of organic matter can easily pass through.

  • Convenient operation

    Convenient operation

    Hydraulic depth adjustment
    Hydraulic depth adjustmentThe rear rollers assume the role of depth control for the disc harrow. Working depth is adjusted hydraulically and quickly without risk to the operator. The weight of the roller is transferred to the disc harrow during operation. Thus ensuring reliable penetration on dry and hard ground.Convenient adjustmentSetting up for different soil conditions must be quick and straightforward. On the TERRADISC compact disc harrow that’s conveniently solved with hydraulic depth adjustment.

    • Folding 5 mm-thick spacer plates are used to fine-tune depth control.
    • The trailed harrow tines are adjusted in unison with the roller mounting arms.
    • No complicated manual intervention required – convenience that every tractor driver deserves.

    Road Transport

    Road Transport
    Road Transport

    The outer disc pairs are folded upwards hydraulically for transport on the road. The edging plate is simply pushed inwards for transport widths of 3.0 m, 3.50 m and 4.0 m.

    • The TERRADISC 3501 can be transported on the road unaccompanied in situations where laws permit a width of 11.84′ / 3.50 m.
    • That offers up to 17 % higher output compared to a 9.84′ / 3.0 m implement.

  • Discs, harrows and edging boards

    Discs, harrows and edging boards

    Adjustable outer discs

    Adjustable outer discs
    Adjustable outer discsOn the left and right the outermost concave discs are depth adjustable. This means you achieve perfect merging of passes.

    Levelling harrow

    The optional spring steel levelling tines deflect the flow of soil to the rear roller, crumbling and levelling the ejected mixture of trash and soil. The height of the levelling tines, which are 14 mm thick and feature tangential geometry, is adjusted when the position of the rear roller is changed.

    • The basic height and angle settings are preset using a pin-in-hole matrix.
    • The position of the tines changes in accordance with the working depth. The deeper the setting the easier the flow of material to the rear.

    Edging boards as standard

    For a uniform surface finish, adjustable edging boards are provided on both sides as standard equipment.

  • TERRADISC MULTILINE

    TERRADISC MULTILINE

    Extend the range of applications for the TERRADISC 3001 / 4001 with MULTILINE

    Straightforward and compact

    TERRADISC MULTILINE
    TERRADISC MULTILINEThe TERRADISC MULTILINE is a trailed implement. This means that the load acting on the rear axle of the tractor is minimised. At headlands and during transport, the unit is lifted on the tyre packer. This ensures smooth running, high ground clearance, and a low soil compaction at headlands.

    From stubble cultivation to mulch drilling

    Within just a few minutes, the trailed disc harrow becomes an efficient, fully-functional mulch seed drill. The MULTILINE concept offers arable farmers a wide range of combination possibilities, meeting the demands of the market.

    Flexible all-rounder

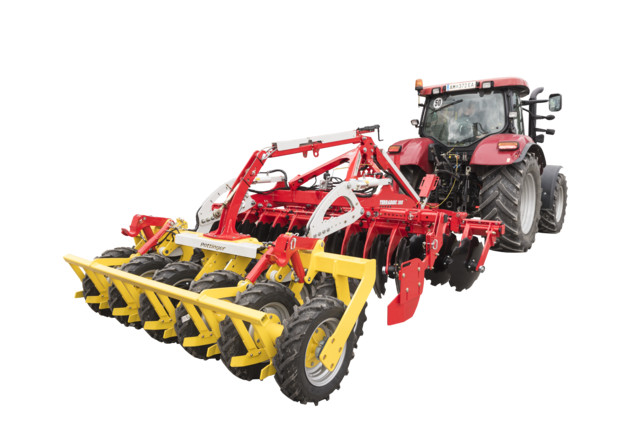

    TERRADISC 3001 MULTILINE
    TERRADISC 3001 MULTILINE

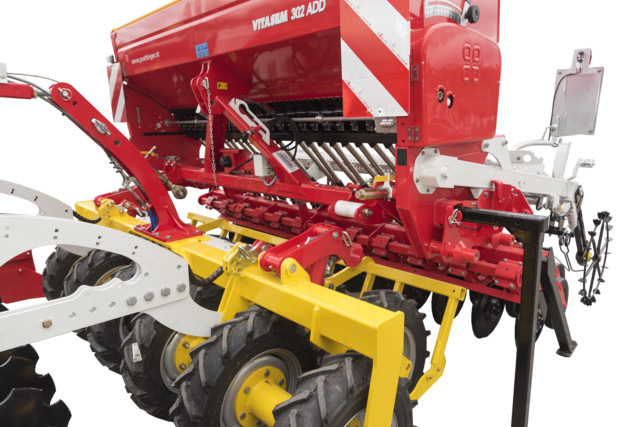

    The VITASEM ADD or AEROSEM ADD seed drill is mounted on the packer. This allows the seed drill to be fitted or removed easily – depending on whether the disc harrow is to be used on its own or not. As a result, the MULTILINE combination is a real multi-talent with a wide range of applications.

    Working cost-effectively

    Moreover, trailed TERRADISC models can also be used on their own for shallow or deep soil cultivation. This allows high output to be achieved with smaller tractors.

    The new tyre packer

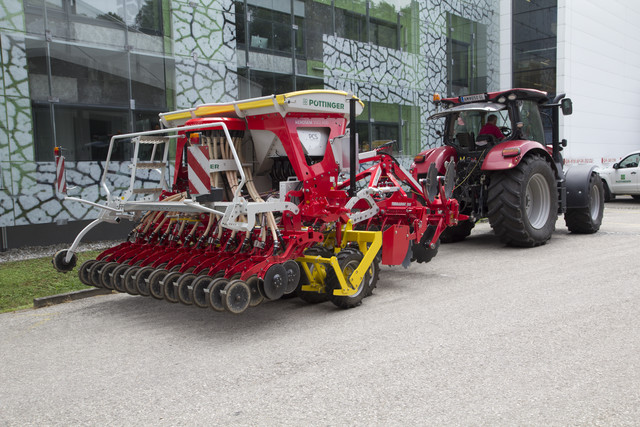

    TERRADISC MULTILINE with AEROSEM
    TERRADISC MULTILINE with AEROSEMAt the headland and during transport, the TERRADISC MULTILINE is lifted by the offset tyre packer so the weight is distributed over the whole working width. The tyre packer ensures excellent handling on the road.

    Offset tyre packer

    TERRADISC 3001 MULTILINE
    TERRADISC 3001 MULTILINE

    Thanks to the offset wheel configuration, smooth operation in the field is guaranteed. Offset wheels need less pulling power because the packer tyres do not form a ridge.

    • Despite an offset of 500 mm, all the wheels are always on the ground.
    • Large area of contact prevents harmful compaction.

    Reliable and blockage-free operation

    Each of the rear packer tyres has to two scrapers to ensure tidy, blockage-free operation of the packer. The scrapers are raised automatically when the machine is lifted.

    • The scraper beam is spring-loaded and adjustable in 5 positions.
    • The springs also serve as overload protection in stony soils.
    • No problems when driving backwards.
    • It is also possible to operate with the scrapers raised.

    Optional air brakes or hydraulic brakes

    • All wheels are braked.
    • Enhanced safety during road transport also with a mounted seed drill.
    • Good road handling.

  • TEGOSEM - catch crop sowing system

    TEGOSEM – catch crop sowing system

    TEGOSEM 200 / TEGOSEM 500

    The TEGOSEM catch crop sowing unit combines soil cultivation and sowing a catch crop in a single pass to save time and costs. The TEGOSEM can be combined with the PÖTTINGER SYNKRO stubble cultivators as well as with TERRADISC disc harrows. This new unit can be used in conjunction with three-point mounted and trailed models.

    Standard equipment and controls

    Control terminal
    Control terminalDGPS sensor for speed sensor
    DGPS sensor for speed sensorThe TEGOSEM is operated from the driver’s seat using a convenient control terminal.Functions

    • Metering shaft control & monitoring, Seed rate electronically adjustable
    • Displayed in kg/ha
    • Priming function
    • Headland management
    • Automatic calibration
    • Total hectare counter and daily hectare counter
    • Calibration button -calibration at the press of a button
    • Emptying function to empty seed hopper
    • Seed level sensor
    • DGPS sensor for speed sensor
    • Pressure guage on hydraulically driven fans for trailed models
    • Sensors on top link or chassis for start/stop of the metering
    • Safe access using platform and steps
    • Small and large seed metering wheels

    Precision sowing

    Outlet with distribution plate
    Outlet with distribution plateOutlets for seed distribution.
    Outlets for seed distribution.The seed material is distributed evenly with the TEGOSEM. The metering system is driven electrically. Two different metering cell wheels are provided as standard to ensure precision distribution for small or large seeds even at low seed rates. Eight outlets handle seed distribution.

    Seed distribution

    The seed is distributed pneumatically via distribution plates, which guarantees pinpoint precision regardless of the wind conditions. The spread pattern of the seed can be adjusted by rotating the mounting shaft. The fan is driven electrically up to a working width of 4.0 metres and hydraulically when wider than 5.0 metres. For trailed stubble cultivators and disc harrows, such as the SYNKRO T and TERRADISC T, the TEGOSEM is only available with a hydraulically driven fan.

    Calibration

    Calibration starts at the press of a button
    Calibration starts at the press of a buttonCalibration is easy: the calibration procedure is started by the press of a button. A calibration bag is provided as standard equipment. A logical guide makes each calibration step easy to follow.

    Metering start/stop

    A sensor on the top link detects when to start and stop metering. On trailed models, this is detected using a load cell on the drawbar.

  • Rear rollers

    Rear rollers

    It’s your choice. PÖTTINGER offers a wide range of rear rollers for perfect results with the desired tilth in any type of soil. The whole range of rollers features precision manufacturing and robust design engineering.

    Cage roller

    Cage roller
    Cage rollerThe ideal roller for dealing with dry, non-sticky soils. The roller is fitted with strong bars for optimal compression.Diameter 540 mm, 11 bars.Diameter 660 mm, 12 bars.

    Double cage roller

    Double cage roller
    Double cage rollerThe double cage roller is fitted with two different diameter rollers (540 mm front and 420 mm rear). The pendular function ensures optimum ground tracking and perfect tilth.

    Knife ring roller

    Knife ring roller
    Knife ring rollerThe advantages of the cutting ring roller with a diameter of 540 mm include enhanced crumbling and re-consolidating by means of wedge-shaped rings. The knives between the rings break up clods and keep the rings clean. Compression in strips has the advantage that water can be absorbed better. The right choice if you are working on dry and heavy soil with no rocks or stones.

    Pack ring roller

    Pack ring roller
    Pack ring rollerThe packer rings, which are closed on the sides, have a diameter of 550 mm. There are eight rings per metre of working width. The roller leaves consolidated ridges, promoting water absorption and soil respiration. This is the ideal roller on stony, damp ground with large quantities of organic matter. The scrapers are coated for an extended working life.

    CONOROLL roller

    CONOROLL
    CONOROLLRoller print CONOROLL
    Roller print CONOROLLThis roller consists of rings with a diameter of 540 mm. Each ring is made up of four conical segments that are offset to the left and right. The result is a slot with alternate indentations on either side. When rainwater seeps into these indentations, they prevent it from flowing away. Erosion caused by rainfall is minimised thanks to the optimum structure created on the soil surface. The loose soil between the rings ensures good drainage.The gap between each ring is 15 cm. Spring-mounted scrapers are located in between. These promote the formation of a fine tilth while keeping the space between the rings clean. The load-bearing capacity of the conical ring roller is limited on very light soil. This is an ideal roller for medium to heavy soils. The side segments are covered. This guarantees trouble-free operation in harvest residues and stones.

    Tandem CONOROLL roller

    Tandem CONOROLL
    Tandem CONOROLLThe Tandem CONOROLL consists of 2 rollers. The diameter of the rings is 560 mm. Each ring is made up of four conical segments that slant to the left and right. Erosion caused by rainfall is minimised thanks to the optimum structure created on the soil surface. The loose soil between the rings ensures good drainage. The spacing between the rings is 15 cm. Works well on light soil. Ideally suited to trailed machines. The inclination of the roller can be adjusted to allow for the working depth and conditions. This guarantees trouble-free operation in harvest residues and stones.

    Rotopack roller

    Rotopack roller
    Rotopack rollerRotopack rollers mix particularly intensively – for light to heavy, nonsticky soils. Harvest residues remain on the surface of the soil and protect your soil against drying out. Working width 3.0 m.

    Rubber packer roller

    Rubber packer roller
    Rubber packer rollerThe perfect roller for widely varied soil conditions. Especially for use with trailed implements where the load-bearing capacity of other rollers is near the limit. A diameter of 590 mm and the special profiling allows the soil to be compacted in rows. The scrapers are coated for an extended working life.
