MEX 6

Trailed Flywheel Forager

Technical data

MEX 6 Corn
Length
Width3,15 m
Weight with corn header2950 kg
Weight with grass header2610 kg
Number of knives max.10 pcs.
Working width with corn header2,2 m
Working width with grass header1,9 m
Hight working position4,99 m
Hight transport position3,16 m
Chute length3,38 m
Power requirement with corn header130 – 220 hp
Power requirement with grass header100 – 220 PS
Driveline speed with corn header1000 rpm
PTO speed1000 rpm
Interchangeable wheels with corn header19:19
Interchangeable wheels with grass header23:19
Chopping length with corn header5 / 7 / 9 mm
Chopping length with grass header11 / 15 / 19 mm
Coverage0,8 – 1,2



MEX 6 Grass
Length4,72 m
Width3,03 m
Weight with grass header2610 kg
Number of knives max.10 pcs.
Working width with grass header1,9 m
Hight working position4,57 m
Hight transport position2,96 m
Chute length2,56 m
Power requirement with grass header100 – 220 PS
PTO speed1000 rpm
Interchangeable wheels with grass header23:15
Chopping length with grass header11 / 15 / 19 mm
Coverage0,8 – 1,2



*Always confirm model specifications & pricing with a Gendore Product & Sales Specialist
MEX 6

Standard Equipment

  • MEX 6 Corn

    MountingLength-adjustable drawbar for attachment to linkage bar between lower linkages or tractor drawbar
    TransmissionPowerband
    Flywheel speed800 rpm
    Drawbar adjustmentHydraulic drawbar pivot
    Tyres340/55-16
    FlywheelHigh-output flywheel with 1220 mm diameter

    Centrally adjustable

    Tungsten carbide-coated harvester knives

    Penetration470 mm intake width

    4 feed and pre-compression rollers

    Reversible counter blade

    3-position chopped length adjustment

    Protection against foreign objects (option)Electronic
    Pick upProtected by friction clutch

    Hydraulic cylinder for pick up lifting

    Corn headerMaize header hydraulic adjustable, linked to chassis

    Flattened maize auger for difficult harvesting conditions

    Grain pulveriserProven highly effective grain pulveriser
    2 grain cracker plates

    10 adjustable, rasped-surface paddles

    Deflector per knife

    ChuteHydraulic chute and flap adjustment, full-length arc for consistent flow of crop
    PTO shaft guardingWide-angle PTO shaft on one side
    PTO shaft profile1 3/8″ 6-splines
    PTO speed corn header1000 rpm
    Operationelectronic operation via DIRECT CONTROL
    Hydraulic connection1 x single-acting with free flow return line

    1 x single-acting

    Electrical connection1 x 3-pin Cobo plug
    Standard equipment includesSmooth inserts instead of cracker plates for wet corn or grass

    Warning triangle

    Warning sign (rear)

  • MEX 6 Grass

    MountingLength-adjustable drawbar for attachment to linkage bar between lower linkages or tractor drawbar
    TransmissionPowerband
    Flywheel speed620 rpm
    Drawbar adjustmentHydraulic drawbar pivot
    Tyres340/55-16
    FlywheelHigh-output flywheel with 1220 mm diameter

    Centrally adjustable

    Tungsten carbide-coated harvester knives

    Penetration470 mm intake width

    4 feed and pre-compression rollers

    Reversible counter blade

    3-position chopped length adjustment

    Protection against foreign objectsElectronic
    Pick upProtected by friction clutch

    Hydraulic cylinder for pick up lifting

    Grass Pick upWorking width 1900 mm

    Baffle plate

    Jockey wheels – R/H wheel foldable

    ChuteHydraulic chute and flap adjustment, full-length arc for consistent flow of crop
    PTO shaft guardingWide-angle PTO shaft on one side
    PTO shaft profile1 3/8″ 6-splines
    Operationelectronic operation via DIRECT CONTROL
    Hydraulic connection1 x single-acting with free flow return line

    1 x single-acting

    Electrical connection1 x 3-pin Cobo plug
    Standard equipment includes2 wheelchocks

    Warning triangle

    Warning sign (rear)

Technology

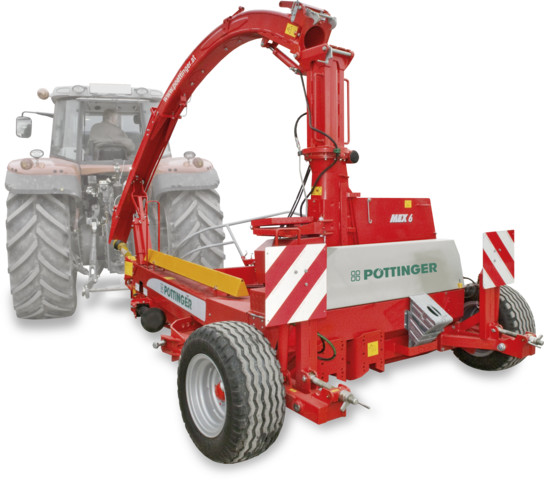

  • MEX 6 – the trailed high-performance forager

    Trailed forager with row independent maize header

    Trailed forager with row independent maize header

    Hydraulically adjustable pivoting drawbar – change between transport position and working position without leaving the driver’s seat.

    • Energy-saving power transmission using PTO, drive shaft and power band.
    • PTO speed 1000 rpm, flywheel speed 800 rpm.
    • Chassis with hydraulically adjustable individual wheel suspension for working position and transport position, combined with header. Tyres 340/55-16.

  • MEX - The proven flywheel system

    MEX – The proven flywheel system

    The combination of pre-compression feed rollers, exact chopped length with the flywheel and corn cracker guarantees top quality material. All stalks and leaves are finely-chopped and grains pulverised for effective rumination. MEX forage harvesters – acknowledged the world over as the benchmark for best chopping quality. The huge blowing power of the flywheel ensures trailers are filled up right into the furthest corner.

    PÖTTINGER flywheel system

    Flywheel system

    Grinding disc

    • Flywheel with 10 centrally-adjustable knives, ideal chopping length is quickly set.
    • High chute (up to 4.80 m) and high blowing power plus coated blowing paddles.
    • Tungsten-carbide coating on knives and shear bar for smooth and precise chop. The shear bar is also tungsten-carbide coated and reversible.
    • Mounting and adjustment functions are separate for rapid replacement without affecting setting.
    • Wear plates in the forager housing can be replaced cost-effectively before damage occurs to housing, important on abrasive soils.

    Corn cracker – more nutrients from maize

    Corn cracker

    • Exceptional quality forage in all harvesting conditions.
    • Rapid adaptation to new crop: allows conversion to harvest green maize in no time.

    Three key components:

    • Deflector behind each knife.
    • Adjustable, rasped-surface blowing paddles.
    • Long, sectioned cracker plate, can easily be replaced with smooth plates.

  • Excellent pre-compression – perfect cut

    Excellent pre-compression – perfect cut

    A uniform and precise chopping action can only be achieved if the crop is heavily compressed before reaching the knives. PÖTTINGER foragers are equipped with four aggressive pre-compression rollers for optimum compaction at the flywheel. This guarantees perfectly chopped material in all operating conditions.

    Rugged feed system

    Feed system
    Feed system

    The right chopped has to be quickly and easily adjusted to current operating conditions.

    • Three different chopped lengths can be quickly set using the three-step belt drive, equipped with hydraulic reversing gear as standard.
    • Individual overload protection on each driveshaft to the feed rollers.

    Perfect compression roller control

    Compression roller control
    Compression roller control
    • The PÖTTINGER concept featuring the three-step belt drive system for the pre-compression rollers provides the ideal solution, which includes a reversing gear.
    • The two upper rollers are spring-loaded to reliably draw in every type of crop.
    • The 470 mm-wide intake channel is critical to achieve high capacity intake.
    • The two upper rollers can move completely independently of each other. This ensures continuous compression of the forage right up to the shear bar.
    • The crop is heavily compressed by the four feed rollers.

  • Control terminal

    Electronic DIRECT CONTROL operator panel

    DIRECT CONTROL
    DIRECT CONTROL

    • Control panel with metal casing and membrane-covered keypad, easy to install with mounting magnet.
    • Direct control of: Raise / lower angle of header in relation to chassis , Rotate chute, Fold flap, Reverse feed system, Pivot drawbar.
    • Hydraulic connections required: One single-acting remote with pressure-free return for DIRECT CONTROL (suitable for closed, open or load-sensing hydraulics).

    Hydraulically folding chute

    Hydraulically folding chute
    Hydraulically folding chute

    • Continuous arc for consistent flow of forage.
    • Hydraulic chute rotation and flap adjustment. Chute rotation up to 270°.
    • Chute height 4.80 m for 4.0 m-high transport vehicles.
    • Can be folded hydraulically for low clearances; no tools required.
    • Access platform and two cleaning points provided as standard.

  • Header

    Header

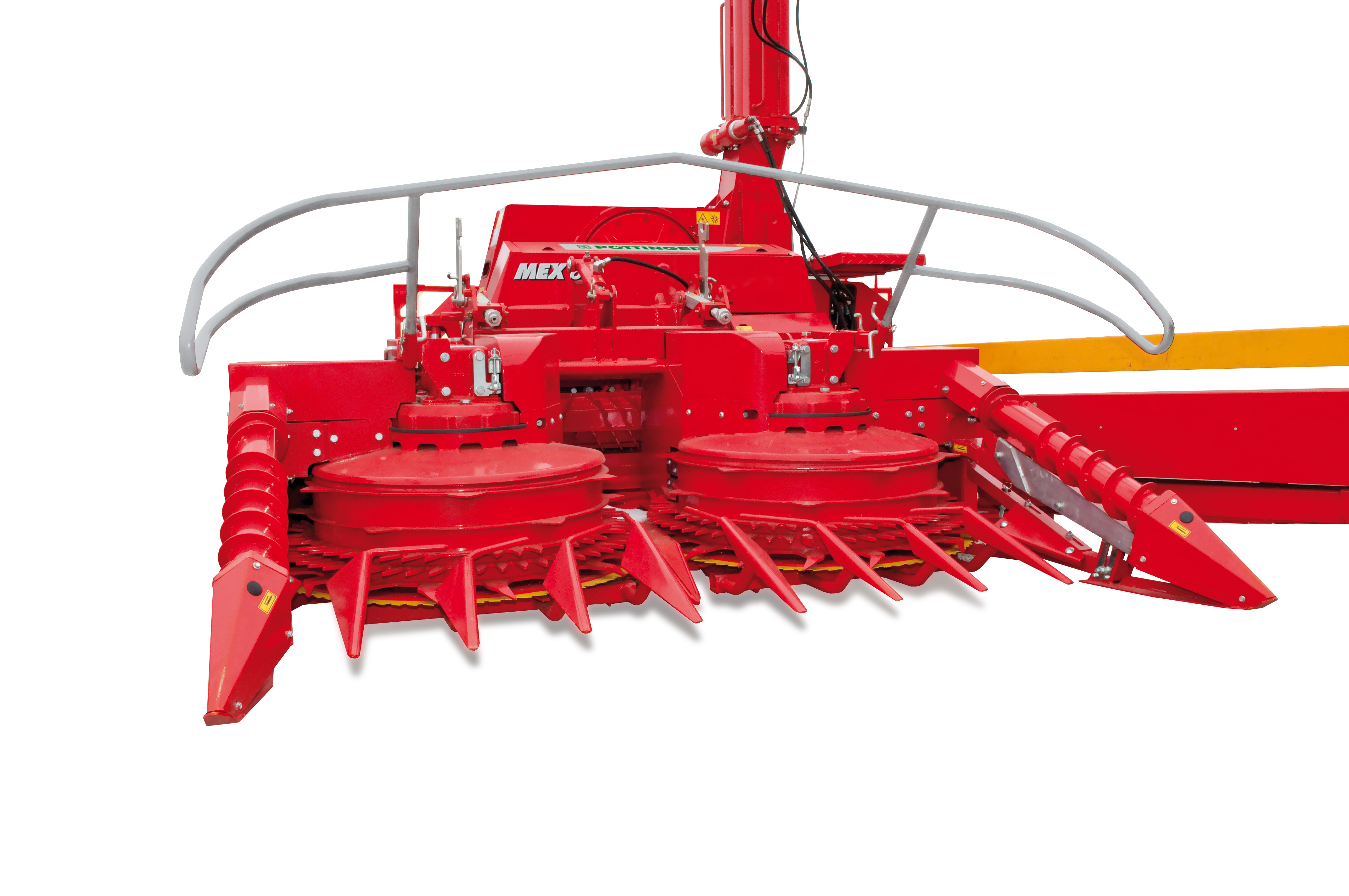

    Row-independent maize header

    MEX 5 in use
    MEX 5 in use
    Maize header
    Maize header

    The maize header enables you to harvest independently of rows or row spacing. As a result the MEX 5 offers manoeuvrable operation like a self-propelled harvester, either with the maize header or pick-up. The MEX 6 is the flexible trailed forager for maize and grass. Tractors up to 220 hp can therefore be utilized very cost-effectively and logistics are extremely easy to organise between the field and the silo.

    • Working width 2.0 m (3 rows spaced 0.7 m apart)
    • The header is mounted so that it can move up and down independently of the forager for best ground tracking.
    • Lowest working height 135 mm.
    • Powered by a direct drive system,
    • the aggressive rings of teeth on the intake drums ensure loss-free feed in even the most challenging harvest conditions.
    • High ground clearance (580 mm) for road transport and headland turns.
    • Mechanically-driven feed augers on both sides as standard.

    High performance – also in grass

    1.90 m wide pick-up

    Pick-up
    Pick-up

    High loading speeds require a reliable and powerful pick-up. The MEX pick-up with six rows of tines delivers impressive performance – even at high forward speeds and in all harvest conditions. Only a clean crop can guarantee trouble-free fermentation for high quality silage.

    • The wide pick-up guarantees maximum performance, even in difficult harvesting conditions such as in damp and short grass.
    • The narrow tine spacing means that the forage is collected reliably even at high driving speeds.
    • The pick-up tines are swept back to prevent damage to the sward, soil contamination and unnecessary wear on the tines.
    • A height-adjustable windguard with a swath roller and the manoeuvrable auger ensure perfect forage flow even when loading is fast and the crop is short and wet.
    • The pneumatic jockey wheels (15×6.0-6) touch the ground at the point of tine contact and guide the pick-up perfectly over every undulation.
    • Free-wheel clutch for riskless reversing of feed system.
    • Overload protection together with the feed rollers.
    • For MEX 5 and MEX 6 with row-independent header as an option for harvesting grass.

    Metal detector

    Metal detector
    Metal detector
    This device affords a high level of protection against damage caused through ferrous foreign objects entering the flywheel. If the magnetic field generated in the lower front feed roller is interrupted, the current is switched off causing the relay to close. The feed drive stops and by switching to reverse disgorges the crop along with the tramp metal.

  • High-performance grass harvesting

    High-performance grass harvesting

    Thanks to PÖTTINGER’s ongoing refinement policy the MEX 6 forager has gradually evolved to become one of the best throughput and most reliable flywheel forage harvesters available. Strongly built to withstand punishing workloads, it performs equally well in grass or maize crops.

    MEX 6 – for high-performance grass harvesting

    MEX 6
    MEX 6

    PÖTTINGER bring their vast grassland machinery engineering experience to bear in the MEX 6. The well-proven Pöttinger flywheel design ensures maximum performance and renowned reliability. A choice of drive speeds means that the MEX 6 is suitable for tractors with a PTO output from as little as 100 hp right up to a maximum of 220 hp. Precision chop forage harvesters fitted with big diameter, heavy flywheels are capable of storing high reserves of kinetic energy. This stored energy enables them to power through heavy, lump swaths with ease and without loss of tractor power. MEX flywheel foragers also run quietly and smoothly with less wear.

    • The 1.90 m pick-up is standard.
    • For grass harvesting, flywheel speeds need to run constantly at 800 or 620 rpm. This is achieved by ordering the correct power band and drive pulley kit for the tractor hp available.
    • The standard speed is 590 rpm, while a kit is also available for 620 rpm.
    • Chop lengths 11 / 15 / 19 mm
    • Chassis with 340/55-16 tyres.

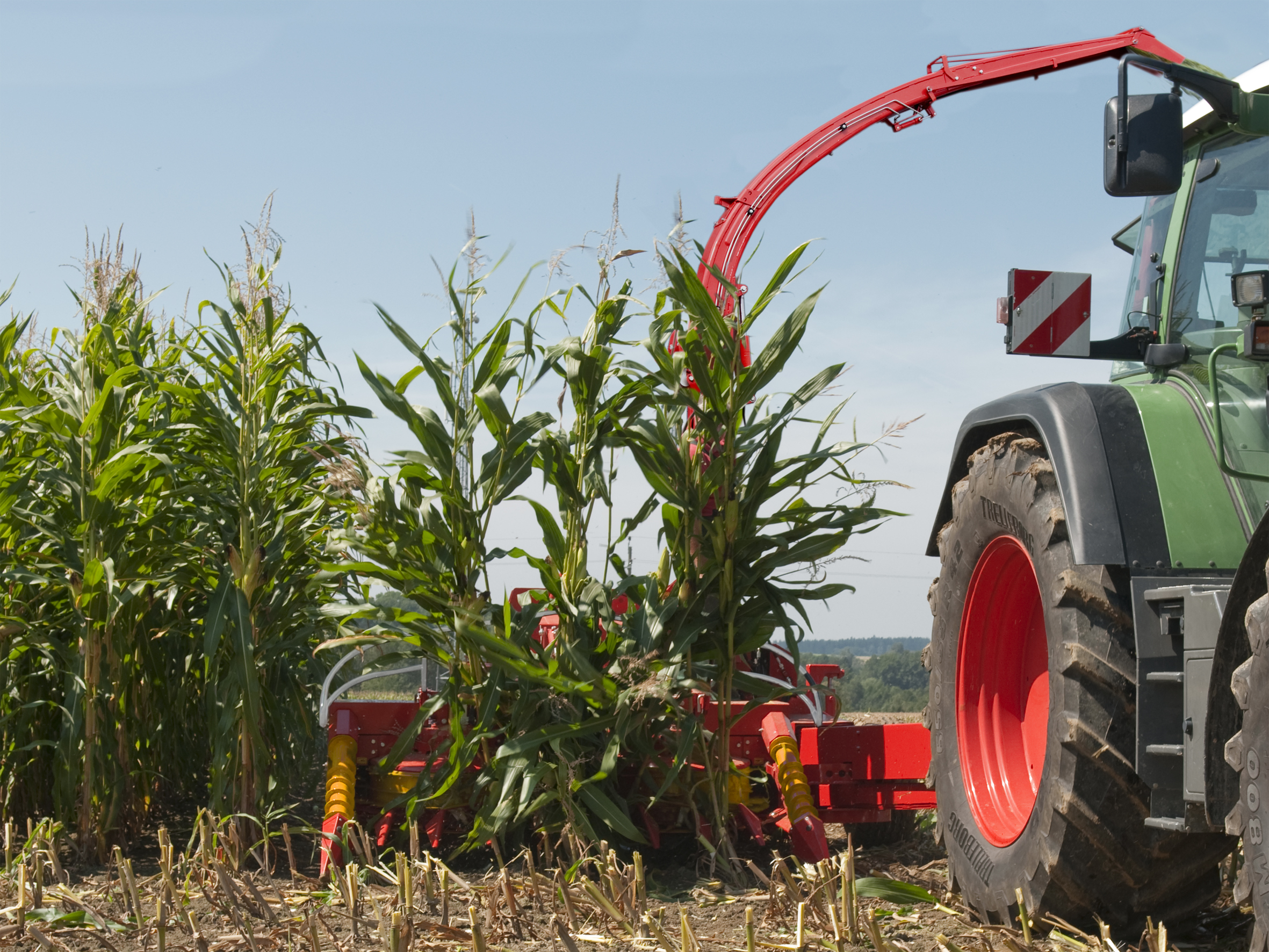

    MEX 6 – for maize and grass

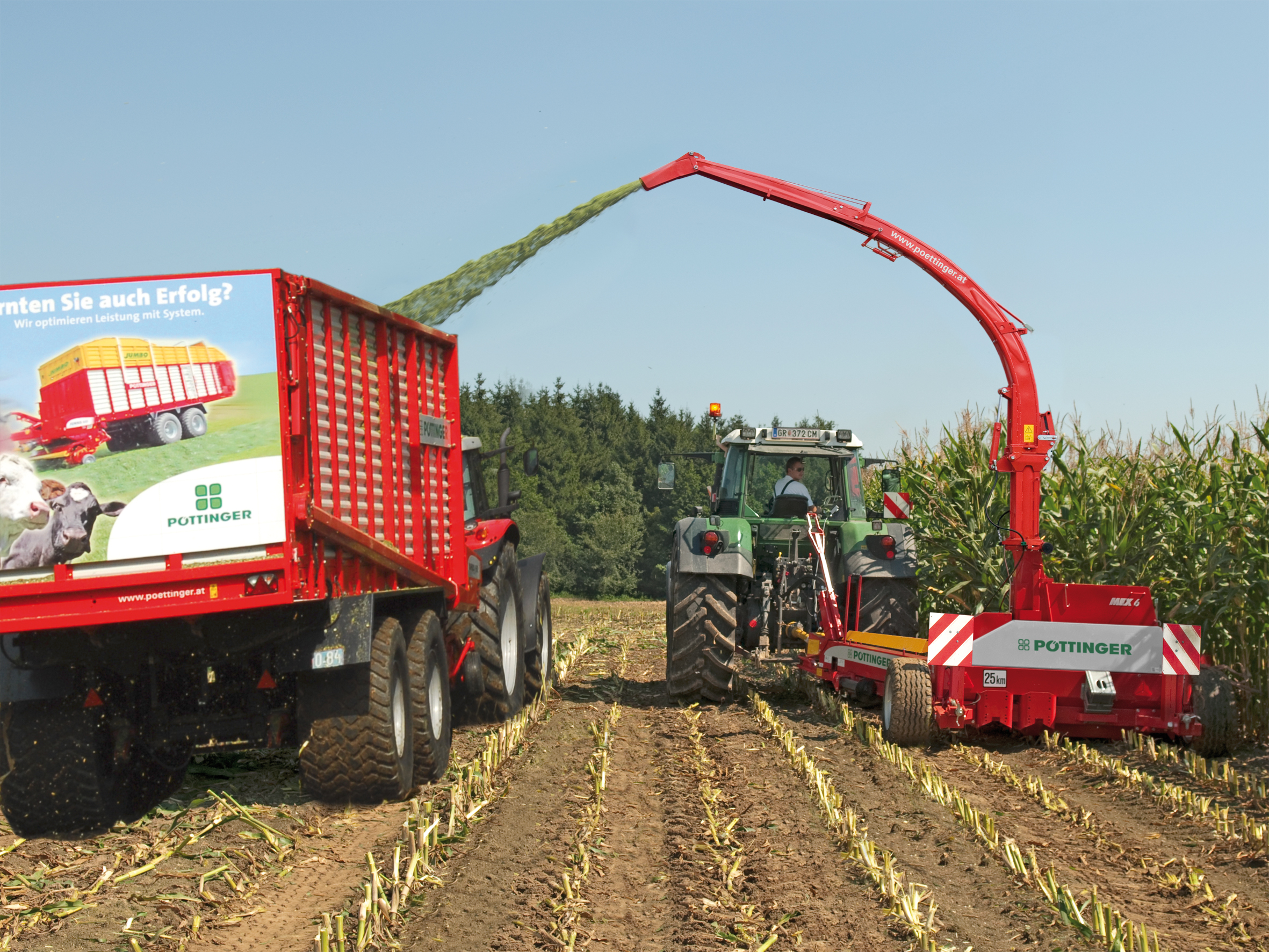

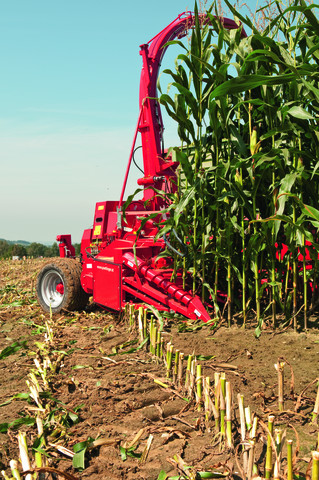

    MEX 6 in use
    MEX 6 in use

    • Energy-saving power transmission using power band for flywheel speed of 800 rpm.
    • Standard chop lengths 5 / 7 / 9 mm, grain cracker.
    • 1.90 m pick-up as an option with adapter kit for flywheel speed of 590 rpm with chop lengths 11 / 15 / 19 mm.
    • Hydraulically adjustable pivoting drawbar – change between transport position and working position without leaving the driver’s seat.
    • Chassis with hydraulically adjustable individual wheel suspension for working position and transport position, combined with header. Tyres 340/55-16.
    • Pivoting hitch drawbar attached to linkage bar between lower links, clevis can be adjusted +/- 200 mm longitudinally.

  • Easy service

    Easy service

    Grinding disc
    Grinding disc

    • Precise sharpening of the knives takes only a few minutes with the integrated grinding disc. On the MEX 5 the flywheel can be reversed for sharpening.
    • The header is quickly removed and the feed system simply folded away. Shear bar and feed rollers are easily accessible for cleaning and servicing.
