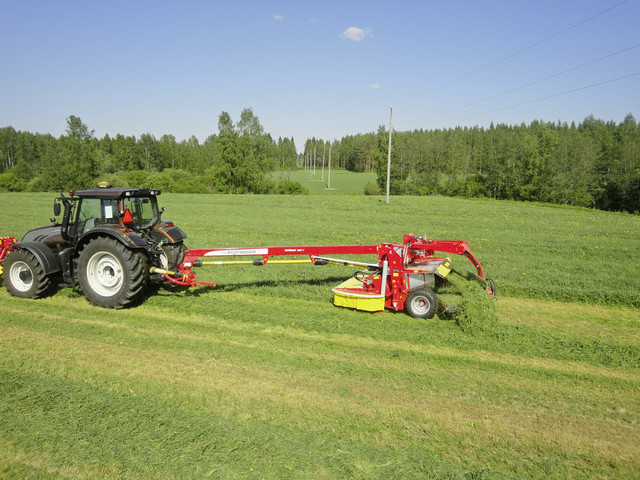

NOVACAT T COLLECTOR

The drawbar and chassis feature a heavy-duty design to meet the demands of high transport speeds. Large tyres also help ensure stable and safe transport.

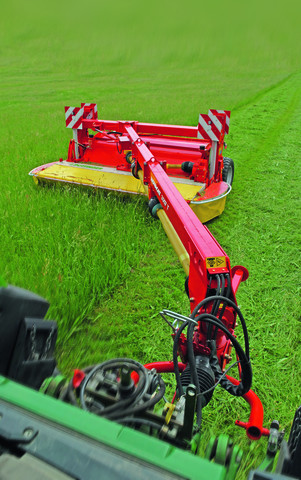

Heavy duty drawbar

The u shaped mounting yoke provides a free angle of movement of +/-30°. The tractor and mower can compensate for uneven ground independently of each other.

A folding parking leg and holders are for the PTO shaft, hoses and cables make it easy to hitch and unhitch. Hoses and cables routed inside the drawbar are protected against damage and offer a neat, uncluttered appearance.

Changing between working mode and transport mode is easy, thanks to the hydraulic pivoting system with check valve integrated into the hydraulic cylinder, reliably securing the drawbar in position. It is operated using one double-acting hydraulic connection on the tractor.

Centre-mounted drawbar for NOVACAT 3007 T and NOVACAT 3507 T

• The drawbar can be pivoted to either side.
• This means that you can choose on which side the mower is to operate.

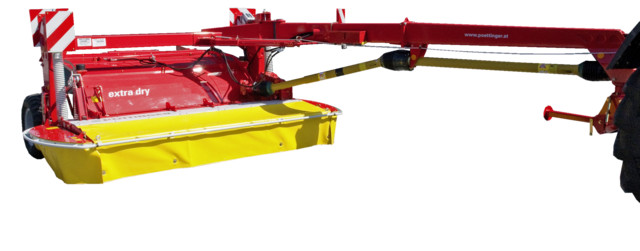

Side-mounted drawbar for NOVACAT 307 T

• The simpler, more cost-effective version.
• The drawbar can be secured in position using a tap when the mower is equipped with the optional swath placement system.

Smooth-running, durable driveline

The complete driveline is fitted with Walterscheid components designed for a power transfer of 132 kW/180 hp. Greasing is only required every 250 hours.

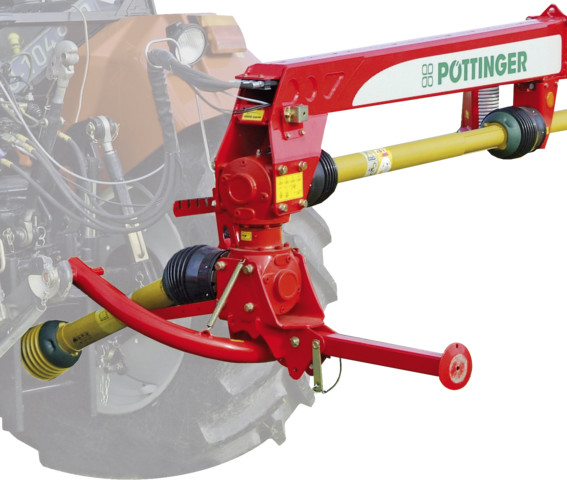

Mounting yoke with pivot gear

The machine is attached quickly and easily to the lower linkages. Transmission speeds of 1000 rpm and 540 rpm can be selected by changing over the double pivot gear. full manoeuvrability is ensured – even on the tightest corners – thanks to the unrestricted turning angle.

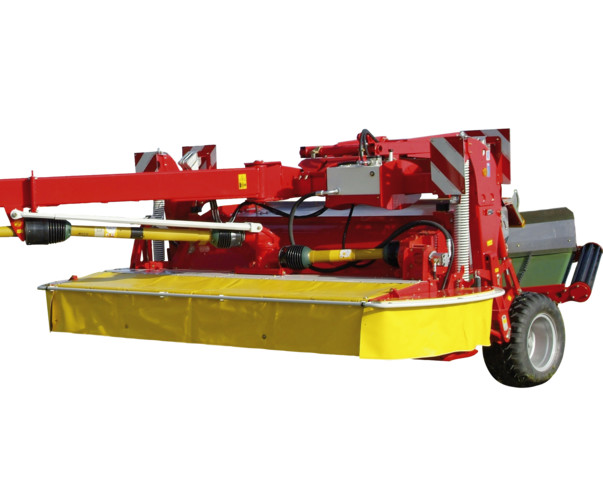

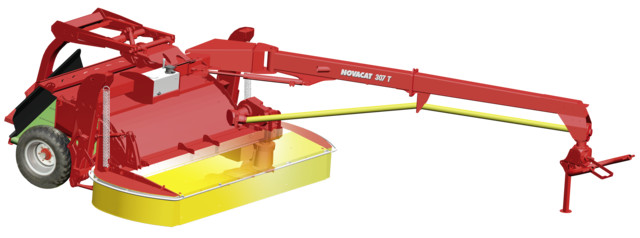

Side-mounted drawbar driveshaft

On side-mounted drawbar versions the driveline runs directly to the side gearbox with a flanged 30° gear unit. Stress-free cutter bar transmission

• The side gear unit splits the drive power between the cutter bar and the conditioner.
• A double universal joint in the cutterbar drive drum provides a stressfree link between the gearbox and the cutter bar.
• The gears run submerged in oil.

Rugged portal frame

Wide freedom of side-to-side movement

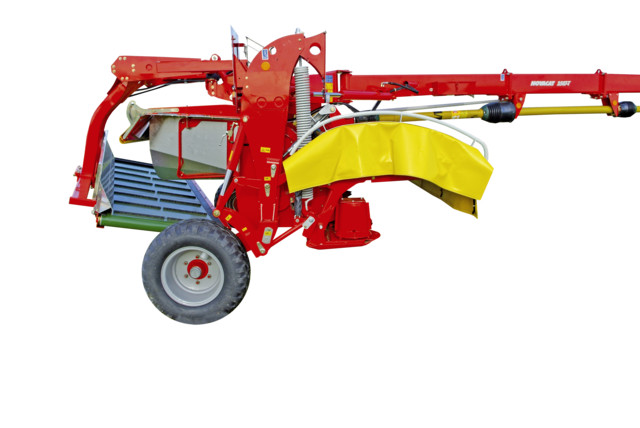

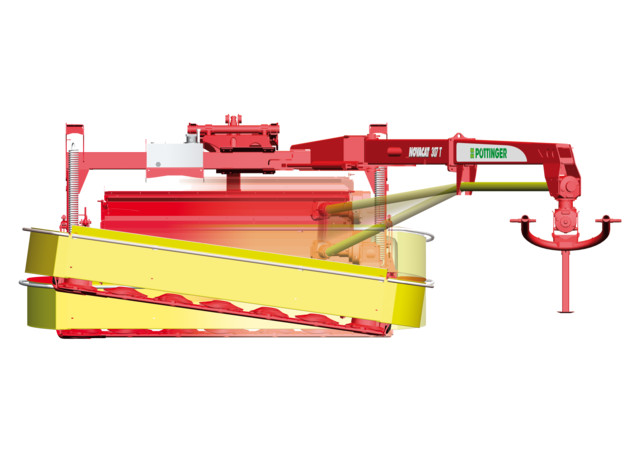

Suspending the mower unit from a portal frame gives the cutter bar a great deal of freedom of movement. The cutter bar is lowered with the portal frame, releasing the cutter bar for perfect ground hugging.

Effective weight alleviation

Two large dimensioned, easily-adjustable alleviation springs guarantee optimum ground pressure in all conditions.

Three-dimensional ground hugging is ensured by the freedom of movement enabled by the cutter bar being suspended in the portal frame.

• The low-slung cantilever system lets the cutter bar glide over bumps and ridges.
• The guide arms are mounted on freely-moving ball joints.
• The guide bars facing up to the cutter bar provide excellent adaptation to ground contours.
• A top link guides the top of the mower unit to complete the four-point suspension system.

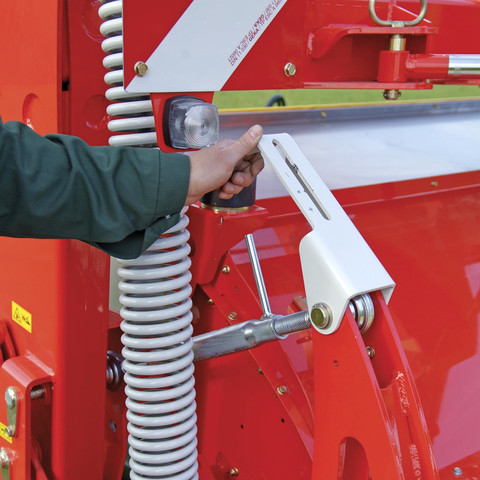

The cutting height can be adjusted quickly and easily using the top link adjuster. A locking lever ensures the setting cannot change of its own accord. A cutting height indicator is integrated in to the locking lever.

PÖTTINGER mowers cut perfectly on every terrain, even over ridges and dips in the ground.

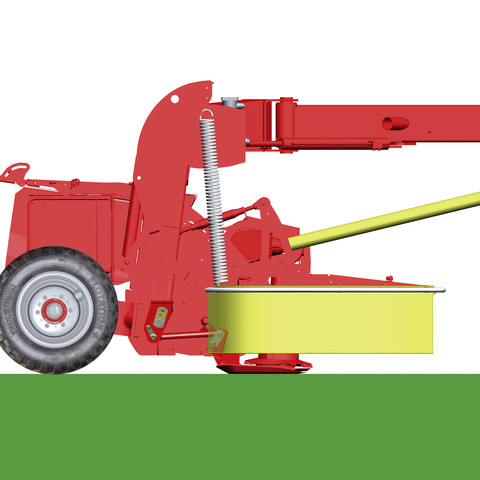

Freedom of vertical movement

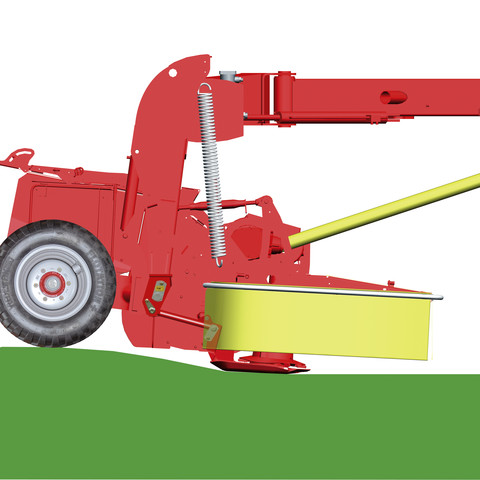

Freedom of vertical movement downwards

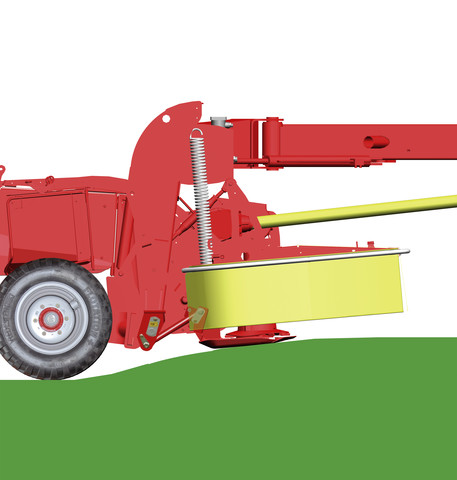

Freedom of vertical movement upwards

Freedom of vertical movement

Up to 200 mm upwards, the cutter bar is inclinded 5° upwards. Up to 120 mm downwards, the cutter bar is inclinded 3° downwards.

The heart of PÖTTINGER disc mowers is the cutter bar, proven over thousands of cuts in the field. NOVACAT disc mower cutter bars are developed and built at the company’s main plant in Grieskirchen – a quality product made in Austria. First-class cutting quality, low drag resistance and strength are the trademarks of these cutter bars. Engineered details guarantee you reliable operation and contribute significantly to an extended service life.

Optimum crop flow – clean forage

Optimum crop flow

The rounded, low profile front edge lets the cutter bar glide smoothly over the ground and separates the crop tidily from the sward. The conveyor effect has been improved by the rounded conical surfaces of the mower discs. The crop flows through smoothly and uniformly, maintaining full cutting capacity in all operating conditions. Integrated paddles keep the cutter bar surface clean. PÖTTINGER guarantees trouble-free downhill mowing, even on steep slopes.

Perfect cutting quality

Sleek cutter bar

The sleek cutter bar design is only 28 cm deep, perfect for enabling the best possible ground tracking. The mower blades rotate very close to the surface of the cutter bar and the counter blade. The optimised overlap of blade paths ensures a clean and uniform mowing pattern.

Engineered to impress

Mower discs

Durable mower discs

The oval, low profile mower discs are made of hardened fine-grained steel. Quick-change blades make maintenance easy.

Feed cones

Optional feed cones

These improve the crop flow and enable swath formation.

High-strength stub shafts

The strong stub shafts are bolted to the gears and are thus easy to replace when required.

Heavy-duty bearings

Durable, twin race tapered bearings with a theoretical bearing spacing of 60 mm are extremely stress-resistant.

Reliable power transmission

The cutterbar gear drive runs in a straight line with virtually the same sized gears.

There are always two teeth in contact with a tooth width of 20 mm. All gears are hardened and machined for smooth running and a long service life.

Wear resistant skids

Wear resistant skids

Wide skids made from hardened boron steel to resist impact and prevent the build-up of soil. Because the underside of the cutter bar is smooth with contoured skids inside and outside, it protects the sward even when cornering tightly.

Wear skid

As an option, you can fit additional wear skids to protect the underside of the cutter bar. The bolted skids can be easily changed if required.

High-cut skid

Optional high-cut skids can be mounted to increase the cutting height from 50 to 80 mm. Their large radius and wide surface area make them especially wear resistant.

Top quality

The cutter bar is made from the best quality steel. The metal plate is precision laser-cut and robot-welded before machining at the state-of-the-art CNC machining centre.

• The blade post is bolted to the mower disc. This can be replaced costeffectively if required.
• The counter knife is clamped in place, meaning it is also easy to replace.

HEAVY DUTY cutter bar

Cutter bar

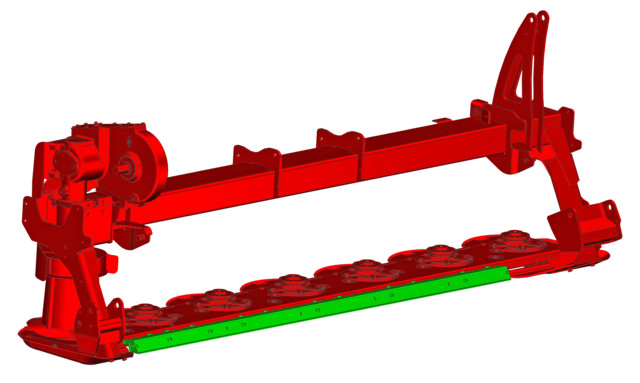

Cutter bar reinforcement
An additional cutter bar reinforcement is offered as an option for especially stony areas.

Easy with quick-change blades

Change blades

Change blades quickly and easily: Press down the spring clip with the blade changing tool and replace the blade.

• The blade is locked securely in place by the spring clip.
• Lengthy, tough operation demands the best blade quality, which is why original PÖTTINGER blades are made from high-quality blade steel.
• A handy blade box provides space for replacement blades.

Maintenance-friendly

Easy access

The guards fold away to provide optimum access to the cutter bar. Front guard curtain can be rolled up.

• Easy access for replacing knives and cleaning.
• Narrower transport width side guards secured with lynch pins.

Simple design

Practical modular design

The bearing hub assembly and fittings are reliably sealed by rubber o-ring seals. The hub assembly can be removed as one unit, while the idler gears are easily removed through the openings – it could not be more straightforward.

ED tine conditioner

EXTRA DRY

The EXTRA DRY conditioner is a joint development with the Institute of Agricultural Engineering (IMAG-DLO) in Wageningen (Holland) that started in 1997 to prove there is a better way. Your forage dries measurably faster thanks to the adjustable conditioning intensity and wide placement.

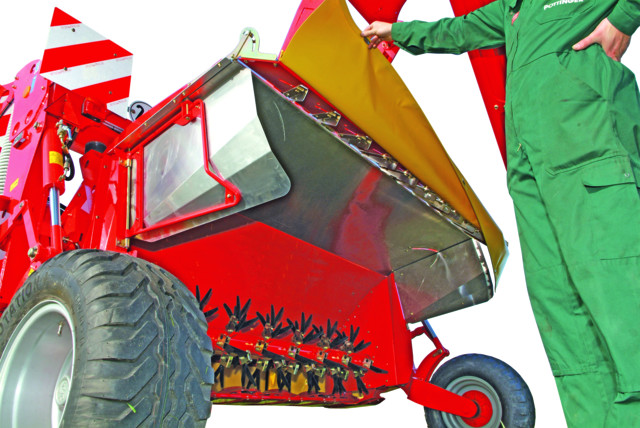

V-shaped steel tines of hardened steel guarantee a continuous flow of crop and an extended service life. The tines are mounted on rubber elements in a spiral configuration on the conditioning roller. The conditioner is driven by the gear unit using interchangeable belt pulleys.

EXTRA DRY drying accelerator

The tine rotor propels the forage across an adjustable conditioning plate. Adjustable guide vanes distribute the flow of crop over the whole mowed width. The forage is then deposited in a uniform and airy blanket by the wide-spread hood. Adjustable swath doors can be used to form a swath.

Conditioning intensity

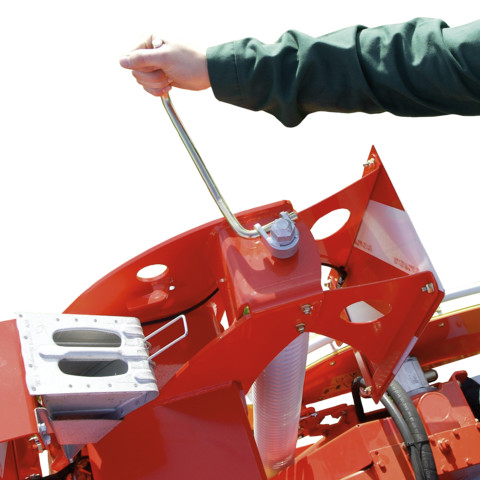

Very careful conditioning through to intensive processing can be selected in four steps using an adjusting lever. This alters the angle of the conditioning plate, which controls conditioning intensity.

RCB roller conditioner

RCB roller conditioner

Profitable yields in dairy farming are only possible with high-quality base forage. Quality nutrients in the forage increases milk output at the same time as reducing the costs of concentrates. For leafy types of plant, PÖTTINGER offers a proven conditioner with crimping rollers.

The roller conditioner is especially suitable for alfalfa and all types of clover due to its precision conditioning capabilities. The rollers intermesh to crimp the stalks and produce a uniform blanket of forage. The roller profile is spiral-shaped. Both rollers are driven.

Flexibility is required when mowing. High performance and variable swath placement are guaranteed with the COLLECTOR cross conveyor belt. Three swath placement capabilities will meet all your requirements.

COLLECTOR cross conveyor

Variable positioning

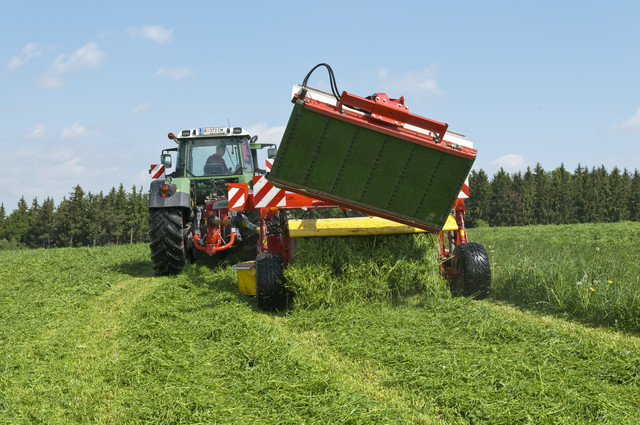

Swaths can be placed in individual rows, as a wide-spread blanket, or merged to form one double swath.

The long and wide, continuous belt conveys the highest quantities of forage without risk of blockages. The drive roller is curved so that the belt always centres itself automatically. A central tensioning system makes it easy to service. An add-on height-adjustable accelerator roller is also available.

Dedicated drive system

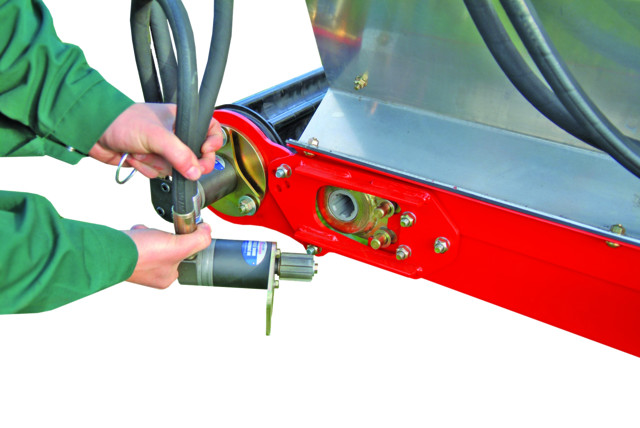

The conveyor belt has its own built-in hydraulics, meaning no additional demand on the tractor’s hydraulics system. The oil pump for the cross conveyor belt is flanged directly onto the main gearbox.

• The belt is driven by a splined stub shaft.
• The conveyor belt speed is set using a flow control valve.
• Electronic adjustment from the driver’s seat is available as an option.

NOVACAT T RC roller-type conditioner

An accelerator roller provides perfect, loss-free transfer of the crop to the cross conveyor belt.

A cost-effective form of swath placement is provided by swath boards, which are adjusted hydraulically.

Swath placement system

Two long swath boards are shifted hydraulically to guide the forage to the left or right of the mower. This enables two swaths to be placed close enough together so that they can be collected by wide pickups in one pass. Double swath width: approx. 3 m depending on type of forage.

This system is operated using the double-acting connection for positioning the drawbar, so only one double-acting connection is required. On the NOVACAT 307 T ED, the drawbar is locked in position by a tap. On the NOVACAT 3007 T ED and NOVACAT 3507 T ED, a second double-acting connection is required.
